دیتاشیت LT1376HVCS#PBF

مشخصات دیتاشیت

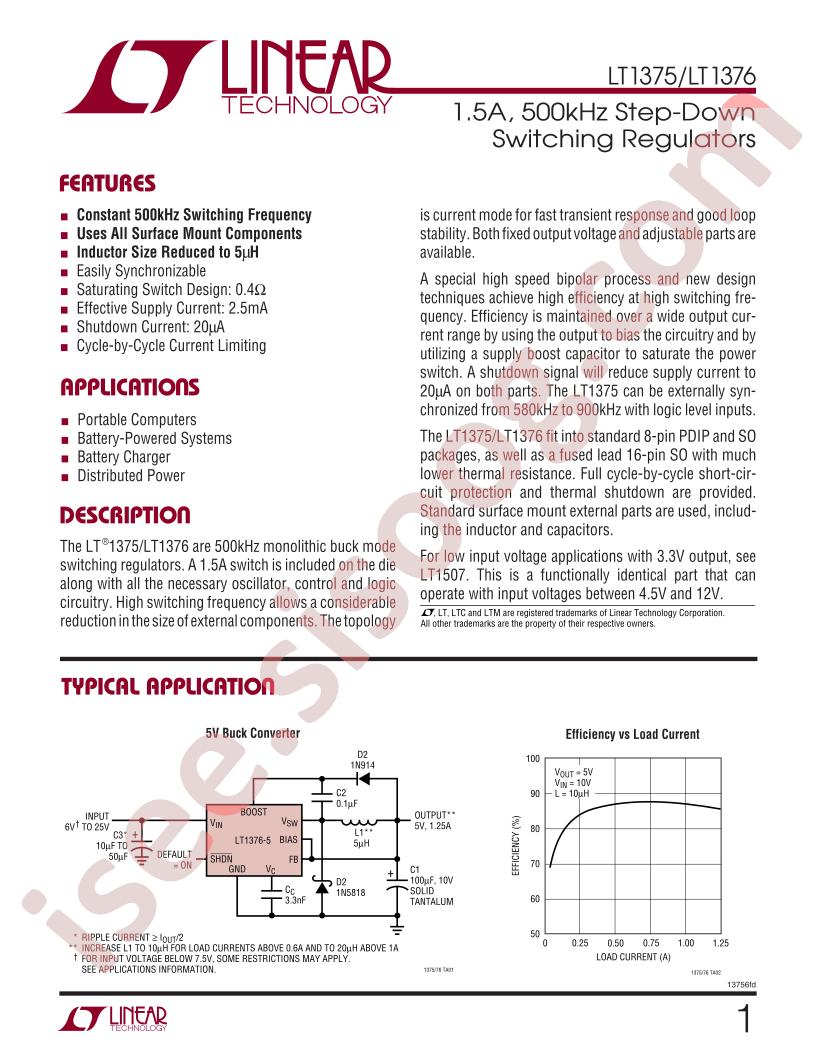

دانلود دیتاشیت LT1375, LT1376 Datasheet	LT1375, LT1376 Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down;SEPIC
Datasheet: Analog Devices LT1376HVCS#PBF
Output Type: Adjustable
Input Voltage: 5V~30V
Output Voltage: 2.42V~25.8V
Number of Outputs: 1
Switching Frequency: 500kHz
Output Current (Max): 1.5A
Operating Temperature: 0°C~+125°C@(TJ)
Synchronous Rectification: NO
Package: SO-16
Manufacturer: Analog Devices
Series: -
Packaging: Tube
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 5V
Voltage - Input (Max): 30V
Voltage - Output (Min/Fixed): 2.42V
Voltage - Output (Max): 25.8V
Current - Output: 1.5A (Switch)
Frequency - Switching: 500kHz
Synchronous Rectifier: No
Mounting Type: Surface Mount
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 16-SOIC
Base Part Number: LT1376
detail: Buck, SEPIC Switching Regulator IC Positive Adjustable 2.42V 1 Output 1.5A (Switch) 16-SOIC (0.154", 3.90mm Width)
