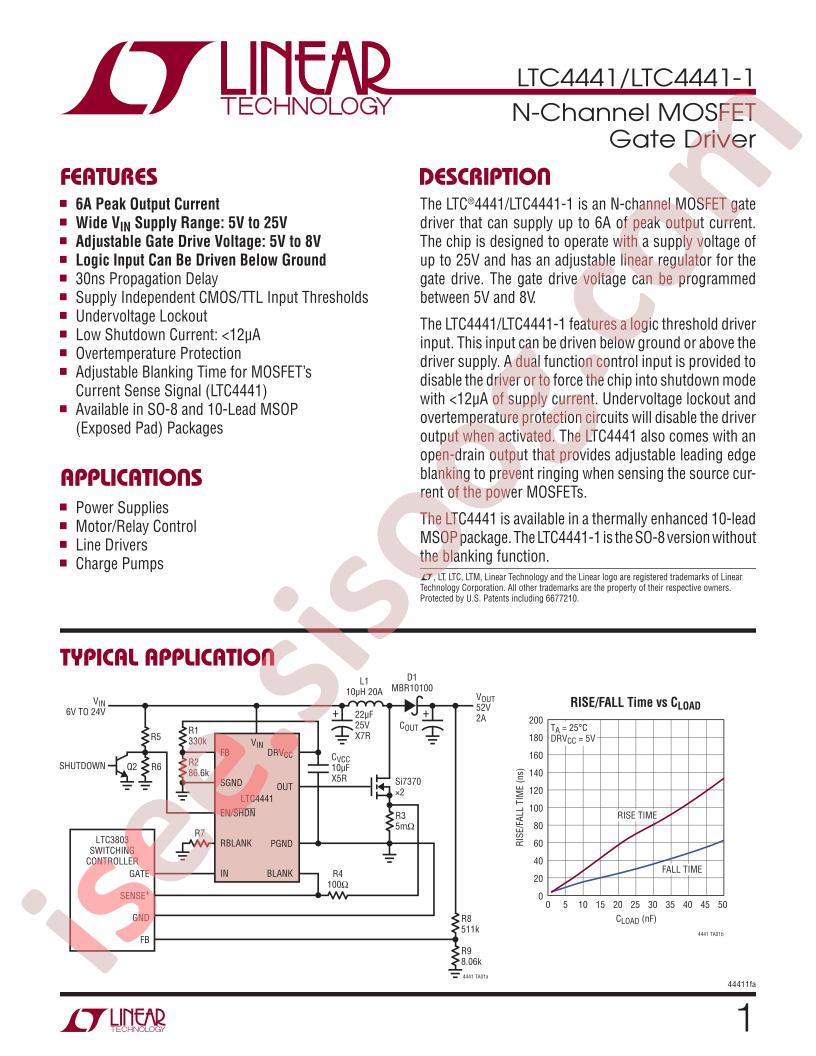

LTC4441(-1) دیتاشیت

LTC4441(-1)

مشخصات دیتاشیت

نام دیتاشیت LTC4441(-1)
حجم فایل 203.298 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت LTC4441(-1)

دانلود دیتاشیت

سایر مستندات

LTC4441IMSE#PBF 16 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Analog Devices LTC4441EMSE#PBF
  • Fall Time: 8ns
  • Load Type: MOSFET
  • Rise Time: 13ns
  • Supply Voltage: 5V~25V
  • Number of Drivers: 1
  • Driven Configuration: Low Side
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Peak Output Current(sink): 6A
  • Peak Output Current(source): 6A
  • Package: MSOP-10-EP
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Channel Type: Single
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 5V ~ 25V
  • Logic Voltage - VIL, VIH: 1.8V, 2V
  • Current - Peak Output (Source, Sink): 6A, 6A
  • Input Type: Non-Inverting
  • Rise / Fall Time (Typ): 13ns, 8ns
  • Mounting Type: Surface Mount
  • Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
  • Supplier Device Package: 10-MSOP-EP
  • Base Part Number: LTC4441
  • detail: Low-Side Gate Driver IC Non-Inverting 10-MSOP-EP
