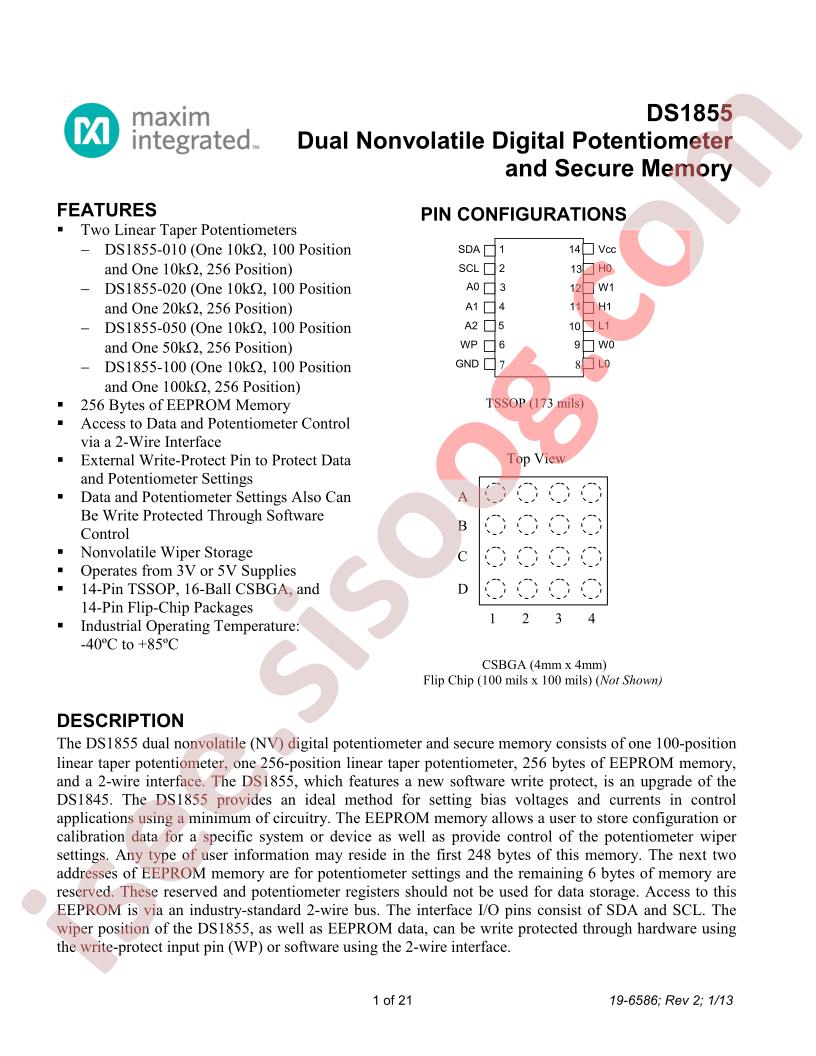

- Datasheet DS1855
DS1855E-C01+T&R Datasheet
Datasheet specifications
| Datasheet's name | DS1855 |
|---|---|
| File size | 515.291 KB |
| File type | |
| Number of pages | 21 |
Download Datasheet DS1855 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Temperature Coefficient (Typ): 750ppm/°C
- Features: Selectable Address
- Supplier Device Package: 14-TSSOP
- Configuration: Potentiometer
- Resistance (Ohms): 10k
- Tolerance: ±20%

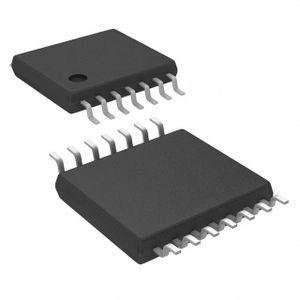

- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
- Resistance - Wiper (Ohms) (Typ): 400
- Part Status: Obsolete
- Voltage - Supply: 2.7V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C
- Number of Taps: 100, 256
- Series: -
- Interface: I²C
- Taper: Linear
- Mounting Type: Surface Mount
- Number of Circuits: 2
- Packaging: Tape & Reel (TR)
- Memory Type: Non-Volatile
- Base Part Number: DS1855
- Manufacturer: Maxim Integrated
- detail: Digital Potentiometer 10k Ohm 2 Circuit 100, 256 Taps I²C Interface 14-TSSOP
