دیتاشیت LT1521CMS8-3#PBF

LT1521-(3, 3.3, 5) Datasheet

مشخصات دیتاشیت

نام دیتاشیت LT1521-(3, 3.3, 5) Datasheet
حجم فایل 209.966 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت LT1521-(3, 3.3, 5) Datasheet

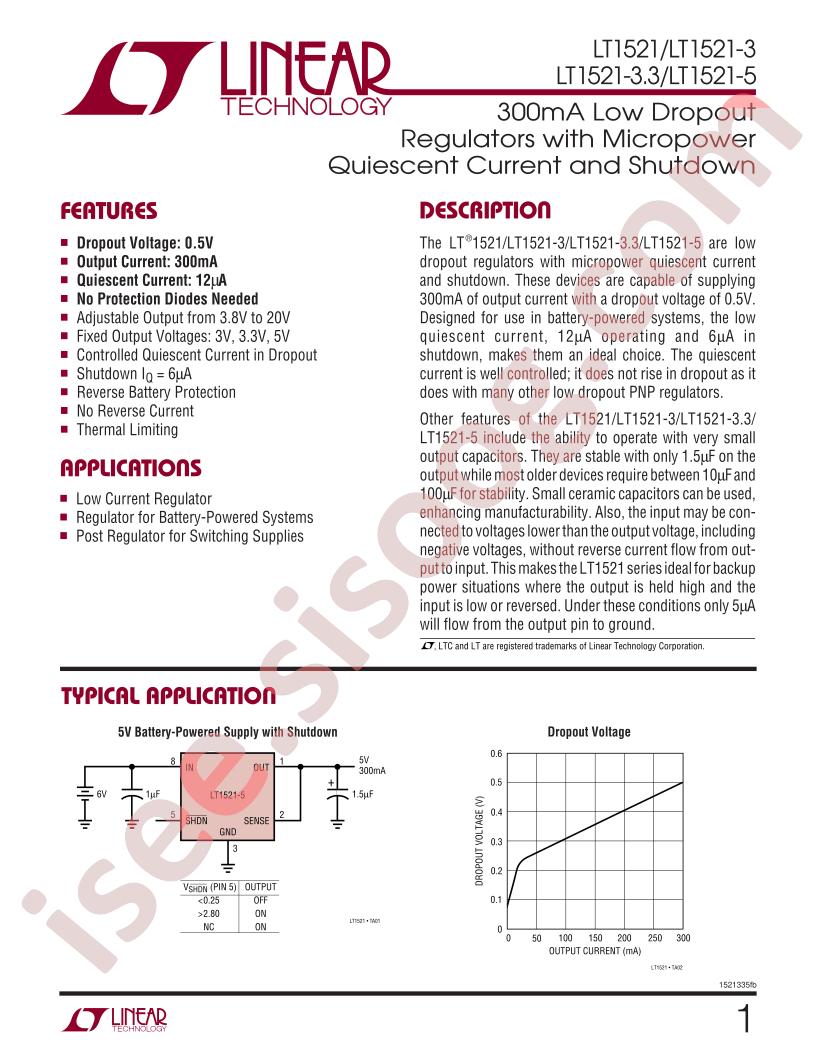

LT1521-(3, 3.3, 5) Datasheet Datasheet

مشخصات

  • Manufacturer: Linear Technology/Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 20V
  • Voltage - Output (Min/Fixed): 3V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.75V @ 300mA
  • Current - Output: 300mA
  • Current - Quiescent (Iq): 25µA
  • Current - Supply (Max): 12mA
  • PSRR: 58dB (120Hz)
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature, Reverse Polarity
  • Operating Temperature: 0°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
  • Supplier Device Package: 8-MSOP
  • Base Part Number: LT1521
  • detail: Linear Voltage Regulator IC 1 Output 300mA 8-MSOP
