دیتاشیت LTC3870EUF-1#PBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3870(E,I)UF-1 |
|---|---|
| حجم فایل | 1077.56 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |

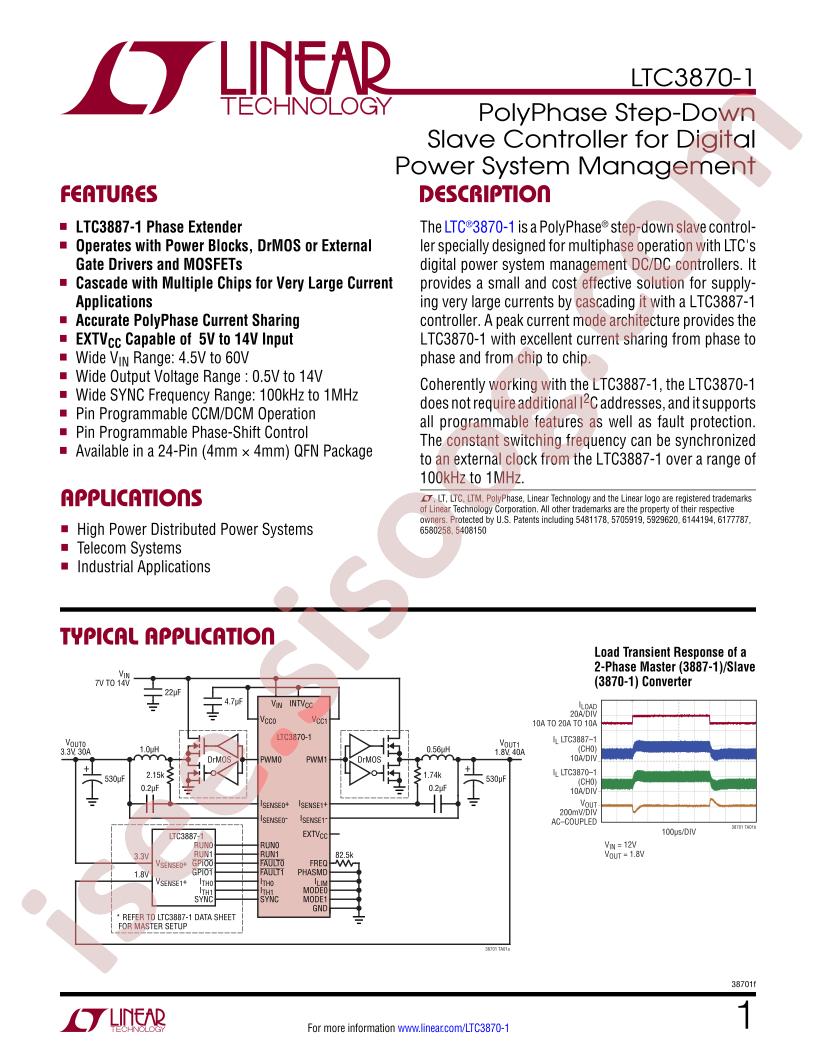

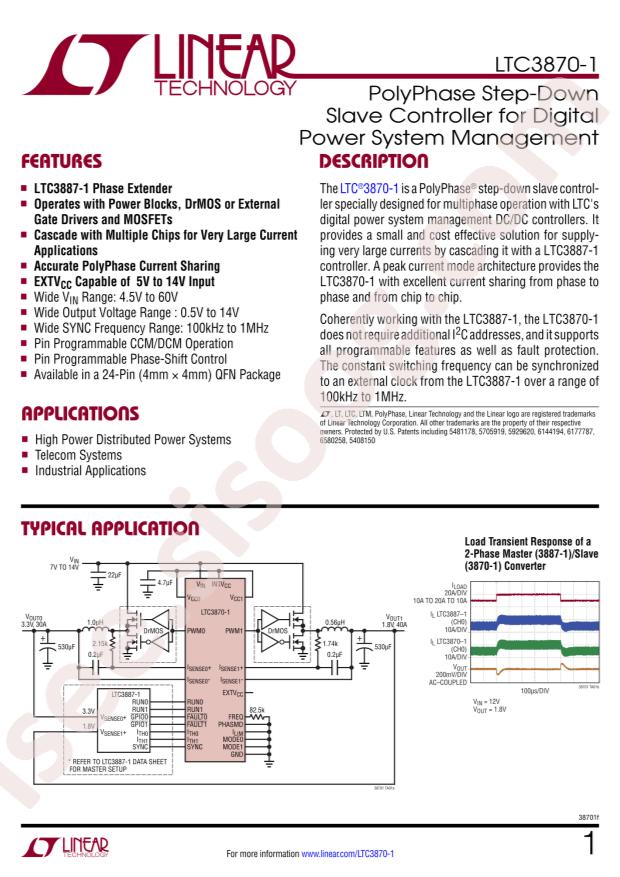

دانلود دیتاشیت LTC3870(E,I)UF-1 |
LTC3870(E,I)UF-1 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/AC-DC Controllers & Regulators
- Topology: Step-down
- Datasheet: Analog Devices LTC3870EUF-1#PBF
- Supply Voltage: 4.5V~60V
- Switching Frequency: 500kHz
- Operating Temperature: -40°C~+125°C@(TJ)
- Package: QFN-24-EP(4x4)
- Manufacturer: Analog Devices
- Series: PolyPhase®
- Packaging: Tube
- Part Status: Active
- Output Type: PWM Signal
- Function: Step-Down
- Output Configuration: Positive
- Number of Outputs: 2
- Output Phases: 2
- Voltage - Supply (Vcc/Vdd): 4.5V ~ 60V
- Frequency - Switching: 500kHz
- Duty Cycle (Max): -
- Synchronous Rectifier: No
- Clock Sync: Yes
- Serial Interfaces: -
- Control Features: Current Limit, Enable, Frequency Control, Phase Control
- Mounting Type: Surface Mount
- Package / Case: 24-WFQFN Exposed Pad
- Supplier Device Package: 24-QFN (4x4)
- Base Part Number: LTC3870
- detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 24-QFN (4x4)
