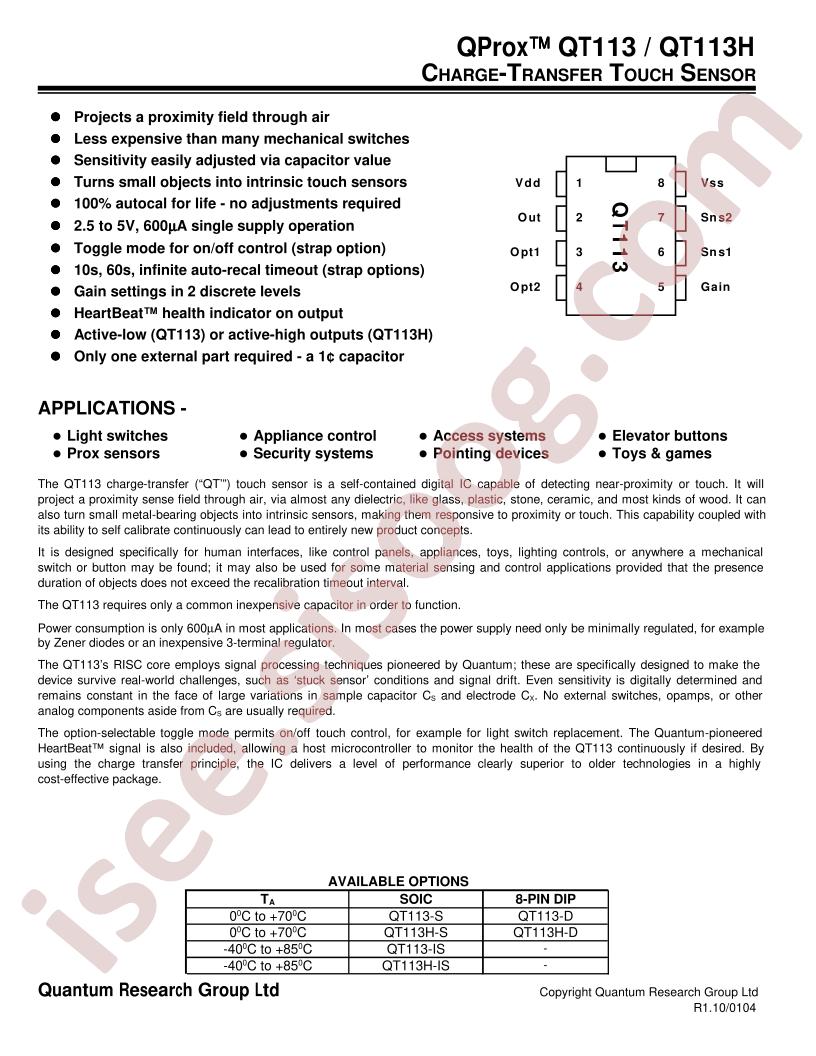

- QT113/QT113H Charge-Transfer Touch Sensor
QT113H-S Datasheet
Datasheet specifications
| Datasheet's name | QT113/QT113H Charge-Transfer Touch Sensor |
|---|---|
| File size | 182.511 KB |
| File type | |
| Number of pages | 12 |
Download Datasheet QT113/QT113H Charge-Transfer Touch Sensor |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: Microchip Technology
- Series: QProx™
- Packaging: Bulk
- Part Status: Obsolete
- Touchscreen: 2 Wire Capacitive
- Resolution (Bits): 14 b
- Interface: Serial
- Voltage Reference: Internal
- Voltage - Supply: 2.45V ~ 5.25V
- Current - Supply: 600µA
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SO
- Base Part Number: QT113
- detail: Touchscreen Controller, 2 Wire Capacitive 14 b Serial Interface 8-SO
