دیتاشیت LT3010HMS8E#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LT3010(-5) Datasheet |
|---|---|
| حجم فایل | 414.552 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 18 |

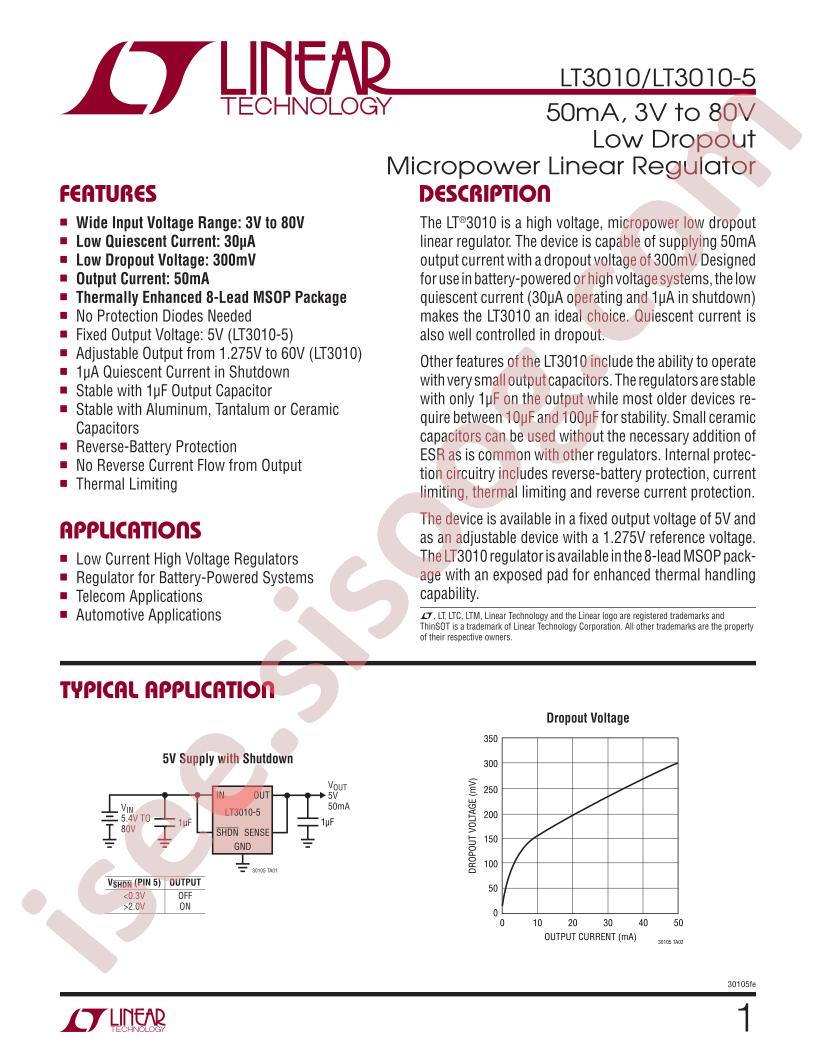

دانلود دیتاشیت LT3010(-5) Datasheet |
LT3010(-5) Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices LT3010HMS8E#TRPBF
- Output Type: Adjustable
- Output Current: 50mA
- Output Voltage: 1.275V~60V
- Dropout Voltage: 0.6V@(50mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 80V
- Operating Temperature: -40°C~+140°C
- Power Supply Rejection Ratio (PSRR): 75dB@(120Hz)
- Package: MSOP-8-EP
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 80V
- Voltage - Output (Min/Fixed): 1.275V
- Voltage - Output (Max): 60V
- Voltage Dropout (Max): 0.6V @ 50mA
- Current - Output: 50mA
- PSRR: 75dB (120Hz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package: 8-MSOP-EP
- Base Part Number: LT3010
- detail: Linear Voltage Regulator IC 1 Output 50mA 8-MSOP-EP
