LTC3113EDHD#TRPBF دیتاشیت

مشخصات دیتاشیت

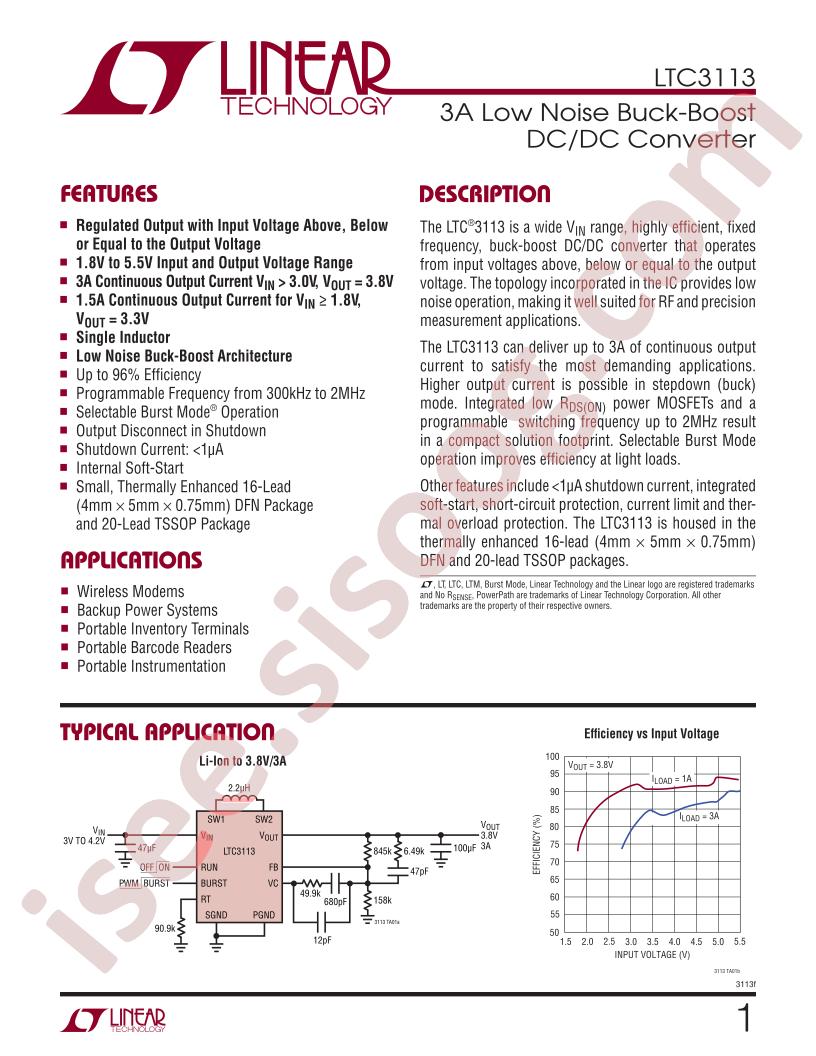

دانلود دیتاشیت LTC3113 Datasheet	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Manufacturer: Linear Technology/Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Function: Step-Up/Step-Down
Output Configuration: Positive
Topology: Buck-Boost
Output Type: Adjustable
Number of Outputs: 1
Voltage - Input (Min): 1.8V
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 1.8V
Voltage - Output (Max): 5.5V
Current - Output: 3A
Frequency - Switching: 300kHz ~ 2MHz
Synchronous Rectifier: Yes
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: 16-WFDFN Exposed Pad
Supplier Device Package: 16-DFN (5x4)
Base Part Number: LTC3113
detail: Buck-Boost Switching Regulator IC Positive Adjustable 1.8V 1 Output 3A 16-WFDFN Exposed Pad
