دیتاشیت LTC1624IS8#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC1624 Datasheet |
|---|---|
| حجم فایل | 412.732 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |
دانلود دیتاشیت LTC1624 Datasheet |
LTC1624 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: boost converterType;Step-down type;Buck-boost type
- Topology: Step-down;Boost;SEPIC
- Datasheet: Analog Devices LTC1624IS8#TRPBF
- Input Voltage: 3.5V~36V
- Duty Cycle (Max): 95%
- Number of Outputs: 1
- Switching Frequency: 200kHz
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: NO

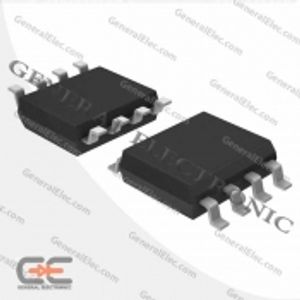

- Package: SOP-8
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Type: Transistor Driver
- Output Configuration: Positive or Negative
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 3.5V ~ 36V
- Frequency - Switching: 200kHz
- Synchronous Rectifier: No
- Clock Sync: No
- Serial Interfaces: -
- Control Features: Enable
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOIC
- Base Part Number: LTC1624
- detail: Buck, Boost, SEPIC Regulator Positive or Negative Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 8-SOIC
