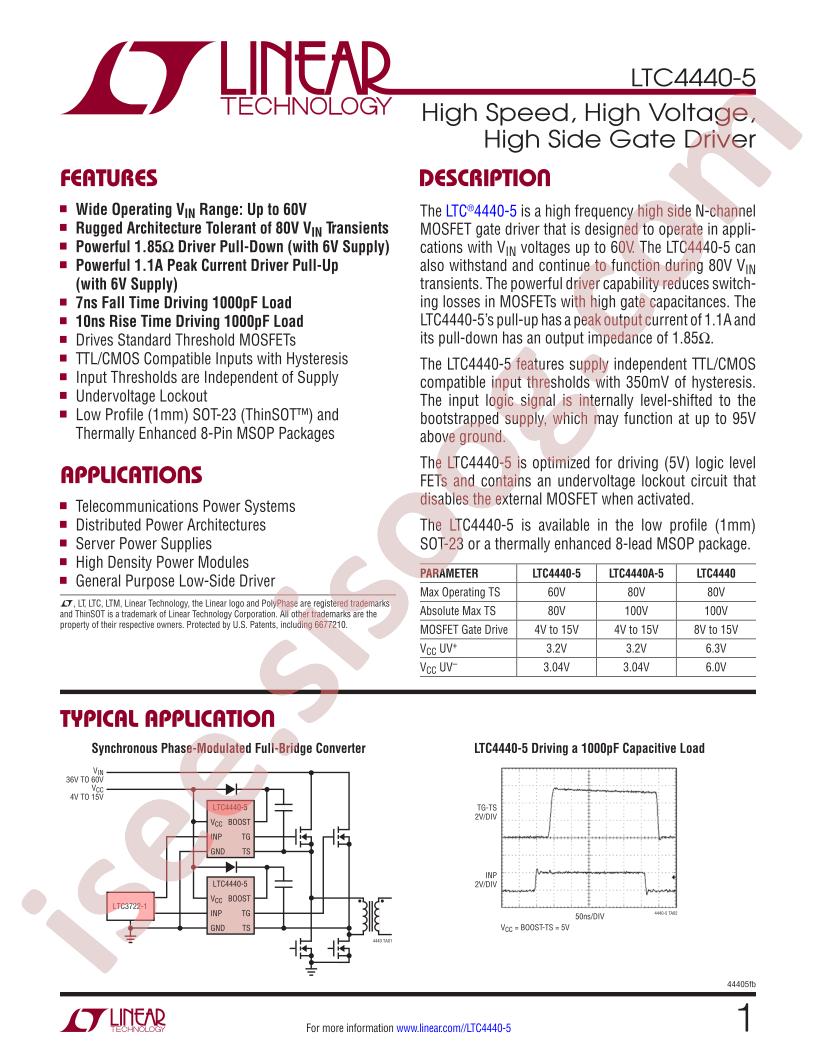

LTC4440-5 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LTC4440-5
|
|
حجم فایل
|
266.439
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Gate Drive ICs
-
Fall Time:
7ns
-
Load Type:
MOSFET
-
Rise Time:
10ns
-
Supply Voltage:
4V~15V
-
Number of Drivers:
1
-
Driven Configuration:
High Side
-
Operating Temperature:
-40°C~+85°C@(Ta)
-
Peak Output Current(sink):
2.4A
-
Peak Output Current(source):
2.4A
-
Package:
SOT-23-6
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Channel Type:
Single
-
Gate Type:
N-Channel MOSFET
-
Voltage - Supply:
4V ~ 15V
-
Logic Voltage - VIL, VIH:
1.3V, 1.6V
-
Current - Peak Output (Source, Sink):
2.4A, 2.4A
-
Input Type:
Non-Inverting
-
High Side Voltage - Max (Bootstrap):
80V
-
Rise / Fall Time (Typ):
10ns, 7ns
-
Mounting Type:
Surface Mount
-
Package / Case:
SOT-23-6 Thin, TSOT-23-6
-
Supplier Device Package:
TSOT-23-6
-
Base Part Number:
LTC4440
-
detail:
High-Side Gate Driver IC Non-Inverting TSOT-23-6
