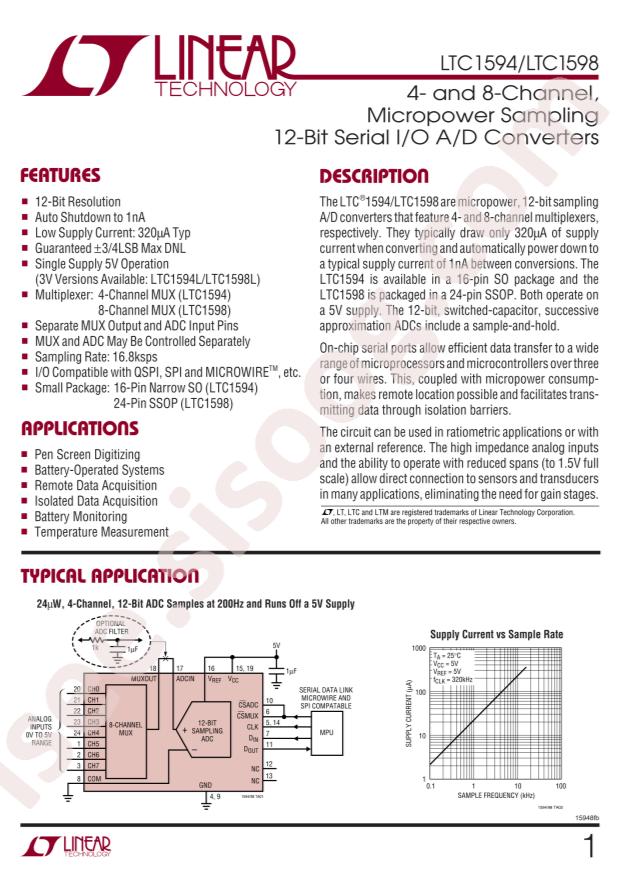

LTC1594CS#PBF دیتاشیت

LTC1594CS#PBF

مشخصات دیتاشیت

نام دیتاشیت LTC1594CS#PBF
حجم فایل 110.05 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

دانلود دیتاشیت LTC1594CS#PBF

دانلود دیتاشیت

سایر مستندات

LTC1594/98 24 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices LTC1594CS#PBF
  • Interface: SPI
  • resolution: 12Bit
  • Supply Voltage: 5V
  • number of channels: 4
  • sampling frequency: 16.8kHz
  • Operating Temperature: 0°C~+70°C
  • Package: SOP-16
  • Manufacturer: Analog Devices
  • Series: microPOWER™
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 12
  • Sampling Rate (Per Second): 16.8k
  • Number of Inputs: 4
  • Input Type: Single Ended
  • Data Interface: SPI
  • Configuration: MUX-S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: SAR
  • Reference Type: External
  • Voltage - Supply, Analog: 5V
  • Voltage - Supply, Digital: 5V
  • Features: -
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 16-SOIC
  • Mounting Type: Surface Mount
  • Base Part Number: LTC1594
  • detail: 12 Bit Analog to Digital Converter 4 Input 1 SAR 16-SOIC
