LTC3428 Datasheet دیتاشیت

مشخصات دیتاشیت

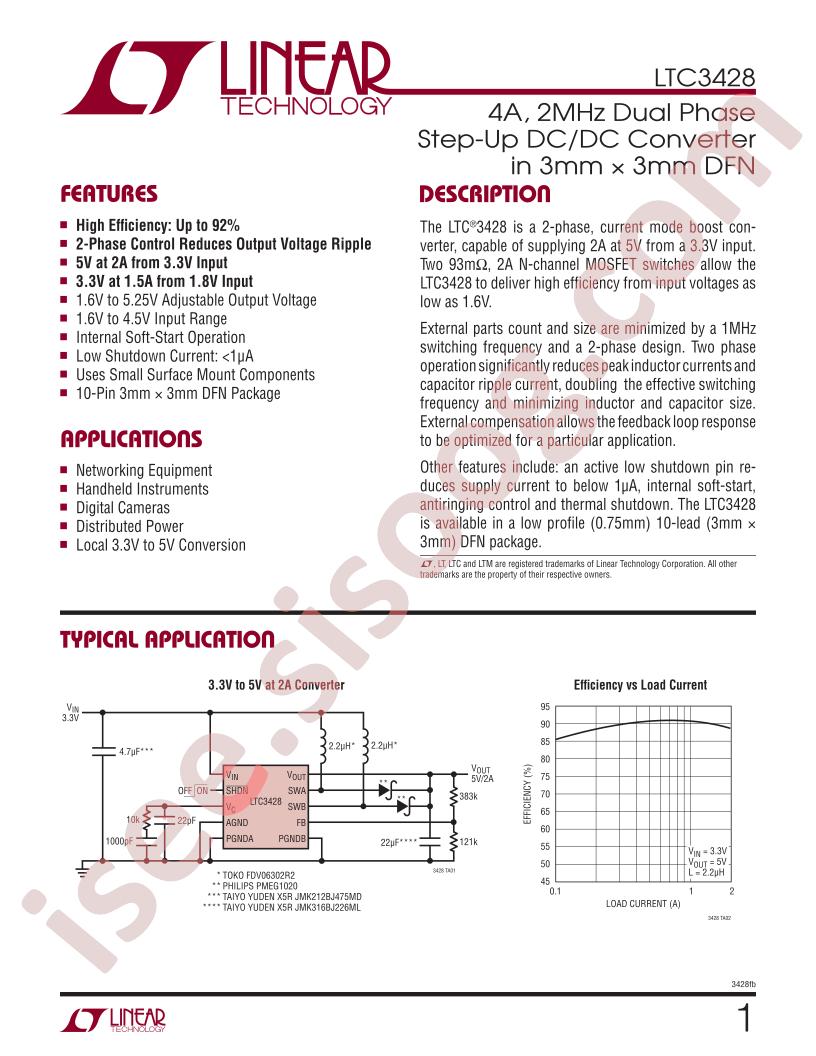

مشاهده دیتاشیت LTC3428 Datasheet	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: boost converterType
Topology: Boost
Datasheet: Analog Devices LTC3428EDD#TRPBF
Output Type: Adjustable
Input Voltage: 1.6V~4.5V
Output Voltage: 1.6V~5.25V
Number of Outputs: 1
Switching Frequency: 1MHz
Output Current (Max): 2A
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: NO
Package: DFN-10(3x3)
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 1.6V
Voltage - Input (Max): 4.5V
Voltage - Output (Min/Fixed): 1.6V
Voltage - Output (Max): 5.25V
Current - Output: 2A (Switch)
Frequency - Switching: 1MHz
Synchronous Rectifier: No
Mounting Type: Surface Mount
Package / Case: 10-WFDFN Exposed Pad
Supplier Device Package: 10-DFN (3x3)
Base Part Number: LTC3428
detail: Boost Switching Regulator IC Positive Adjustable 1.6V 1 Output 2A (Switch) 10-WFDFN Exposed Pad
