دیتاشیت LTC3129EMSE#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3129 Datasheet |
|---|---|
| حجم فایل | 1551.055 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 30 |

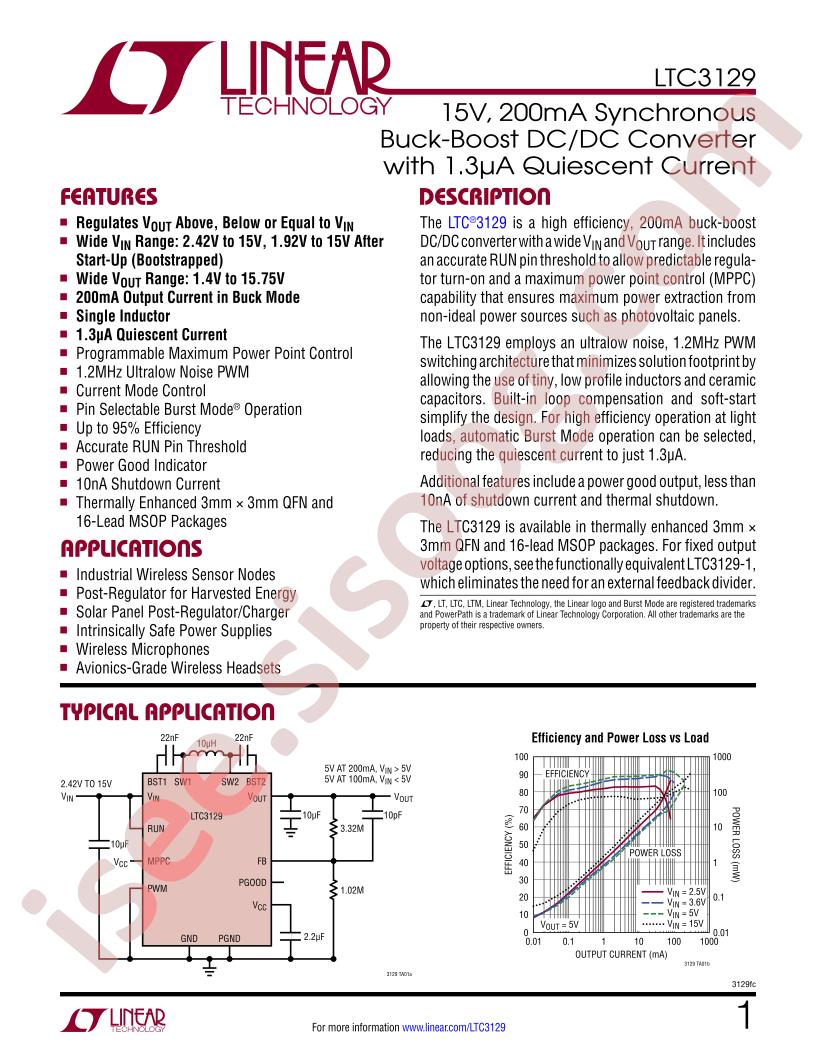

دانلود دیتاشیت LTC3129 Datasheet |
LTC3129 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Buck-boost type
- Topology: Step-down-Boost
- Datasheet: Analog Devices LTC3129EMSE#TRPBF
- Output Type: Adjustable
- Input Voltage: 1.92V~15V
- Output Voltage: 1.4V~15.75V
- Number of Outputs: 1
- Switching Frequency: 1.2MHz
- Output Current (Max): 200mA
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: MSOP-16-EP
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 1.92V
- Voltage - Input (Max): 15V
- Voltage - Output (Min/Fixed): 1.4V
- Voltage - Output (Max): 15.75V
- Current - Output: 200mA
- Frequency - Switching: 1.2MHz
- Synchronous Rectifier: Yes
- Mounting Type: Surface Mount
- Package / Case: 16-TFSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package: 16-MSOP-EP
- Base Part Number: LTC3129
- detail: Buck-Boost Switching Regulator IC Positive Adjustable 1.4V 1 Output 200mA 16-TFSOP (0.118", 3.00mm Width) Exposed Pad
