دیتاشیت LTC3780EG#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3780 Datasheet |
|---|---|
| حجم فایل | 376.011 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 30 |
دانلود دیتاشیت LTC3780 Datasheet |

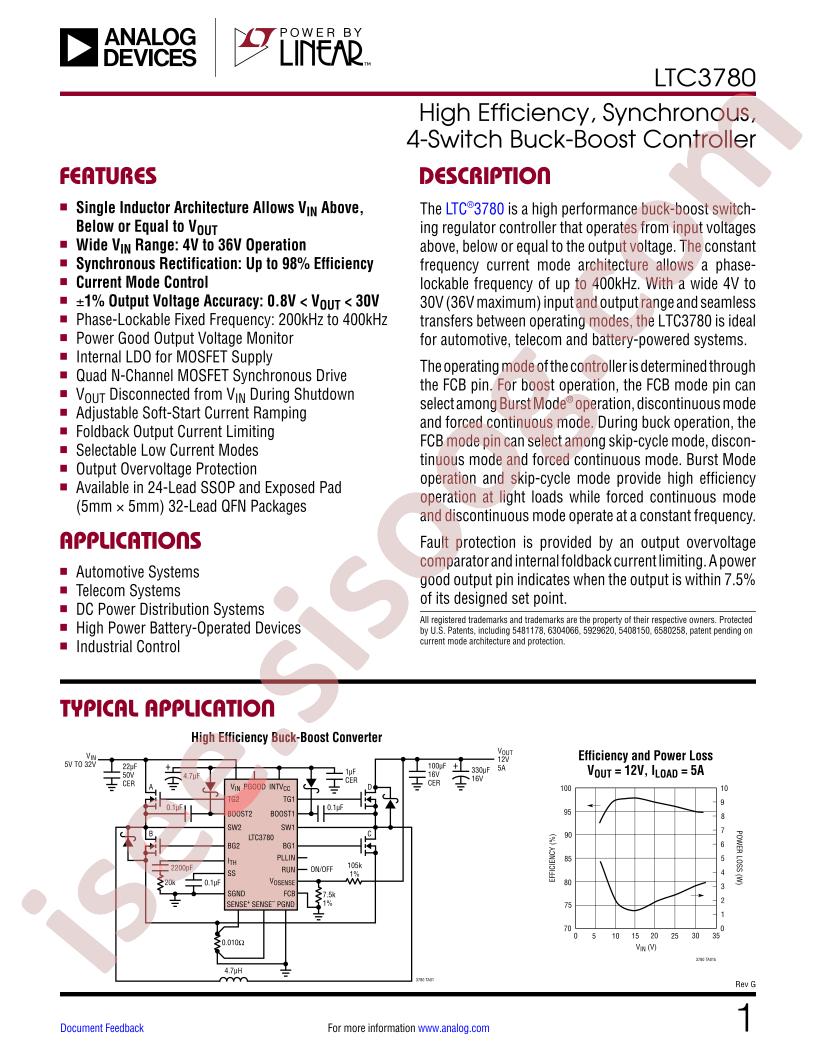

LTC3780 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: Buck-boost type
- Topology: Step-down-Boost
- Datasheet: Analog Devices LTC3780EG#TRPBF
- Input Voltage: 4V~30V
- Duty Cycle (Max): 99%
- Number of Outputs: 1
- Switching Frequency: 400kHz
- Operating Temperature: -40°C~+85°C@(TJ)
- Synchronous Rectification: Yes
- Package: SSOP-24-208mil
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Type: Transistor Driver
- Output Configuration: Positive
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 4V ~ 30V
- Frequency - Switching: 200kHz ~ 400kHz
- Synchronous Rectifier: Yes
- Clock Sync: No
- Serial Interfaces: -
- Control Features: Current Limit, Enable, Power Good, Soft Start
- Mounting Type: Surface Mount
- Package / Case: 24-SSOP (0.209", 5.30mm Width)
- Supplier Device Package: 24-SSOP
- Base Part Number: LTC3780
- detail: Buck-Boost Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 24-SSOP
