دیتاشیت LT8640SEV#PBF

مشخصات دیتاشیت

دانلود دیتاشیت LT8640S, LT8643S Datasheet	LT8640S, LT8643S Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/AC-DC Controllers & Regulators
Topology: Step-down
Datasheet: Analog Devices LT8640SEV#PBF
Output Current: 6A
Switching Frequency: 200kHz~3MHz
Operating Temperature: -40°C~+125°C@(Tj)

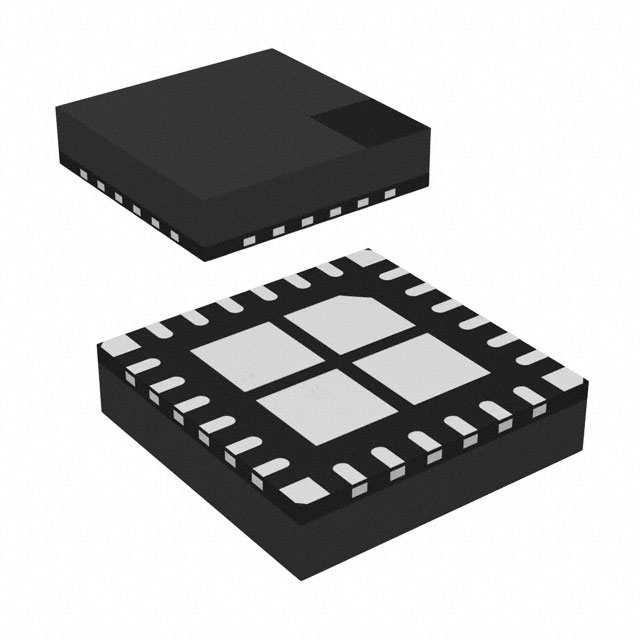

Package: QFN-24-EP(4x4)
Manufacturer: Analog Devices
Series: -
Packaging: Tray
Part Status: Active
Function: Step-Down
Output Configuration: Positive
Output Type: Adjustable
Number of Outputs: 1
Voltage - Input (Min): 3.4V
Voltage - Input (Max): 42V
Voltage - Output (Min/Fixed): 0.97V
Voltage - Output (Max): 42V
Current - Output: 6A
Frequency - Switching: 200kHz ~ 3MHz
Synchronous Rectifier: Yes
Mounting Type: Surface Mount
Package / Case: 24-TFQFN Exposed Pad
Supplier Device Package: 24-LQFN (4x4)
Base Part Number: LT8640
detail: Buck Switching Regulator IC Positive Adjustable 0.97V 1 Output 6A 24-TFQFN Exposed Pad
