دیتاشیت LTC7001EMSE#TRPBF

LTC7001 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LTC7001 Datasheet
حجم فایل 1417.093 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

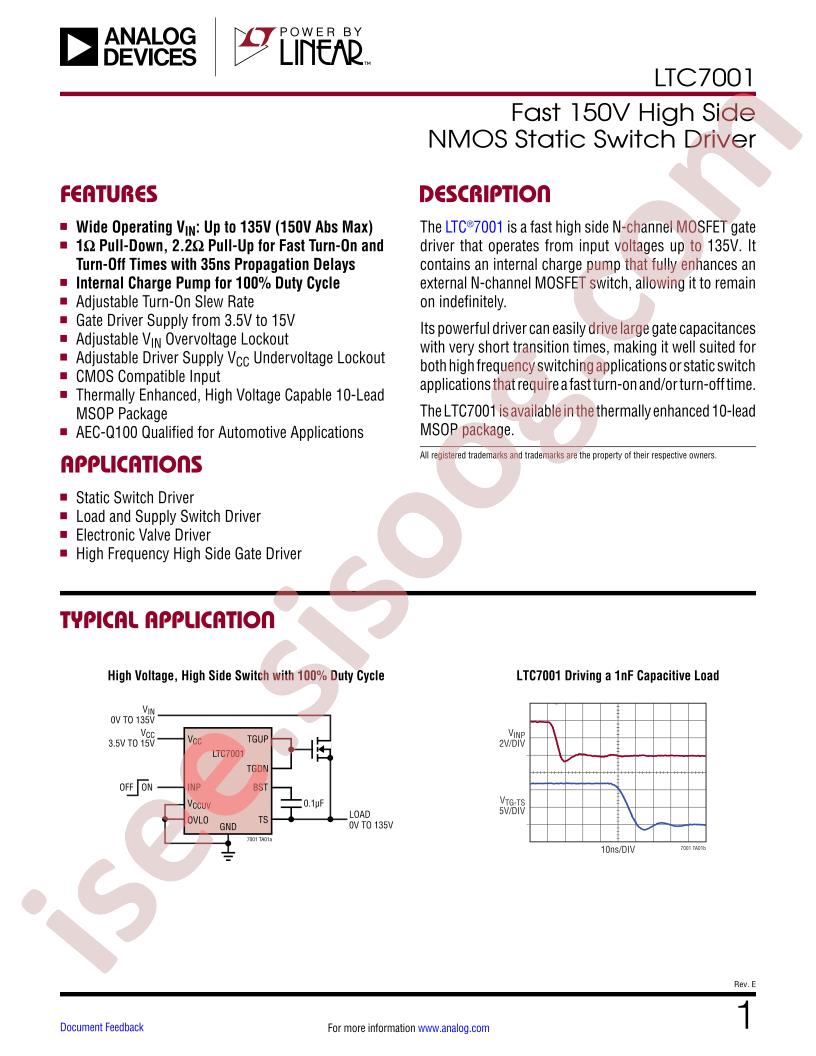

دانلود دیتاشیت LTC7001 Datasheet

LTC7001 Datasheet Datasheet

مشخصات

  • Manufacturer: Linear Technology/Analog Devices
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Driven Configuration: High-Side
  • Channel Type: Single
  • Number of Drivers: 1
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 3.5V ~ 15V
  • Logic Voltage - VIL, VIH: -
  • Current - Peak Output (Source, Sink): -
  • Input Type: Non-Inverting
  • High Side Voltage - Max (Bootstrap): 135V
  • Rise / Fall Time (Typ): 90ns, 40ns
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
  • Supplier Device Package: 10-MSOP-EP
  • Base Part Number: LTC7001
  • detail: High-Side Gate Driver IC Non-Inverting 10-MSOP-EP
