LTC3889EUKG#PBF دیتاشیت

مشخصات دیتاشیت

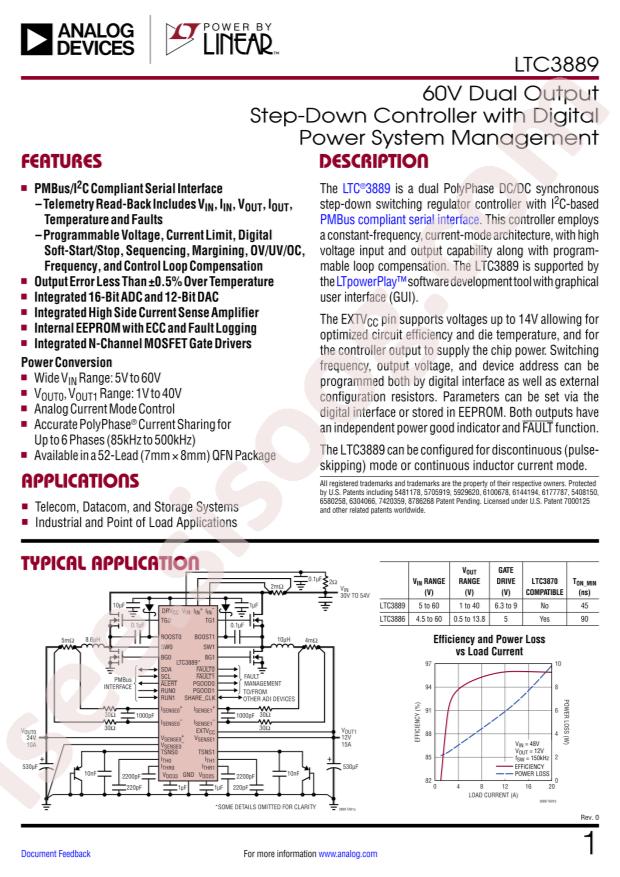

مشاهده دیتاشیت LTC3889EUKG#PBF	دانلود دیتاشیت

LTC3889 120 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Analog Devices LTC3889EUKG#PBF
Output Type: Adjustable
Input Voltage: 5V~60V
Output Voltage: 1V~40V
Number of Outputs: 2
Switching Frequency: 500kHz
Output Current (Max): -
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: Yes
Package: QFN-52-EP(7x8)
Manufacturer: Analog Devices
Series: -
Packaging: Tube
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 5V
Voltage - Input (Max): 60V
Voltage - Output (Min/Fixed): 1V
Voltage - Output (Max): 40V
Current - Output: -
Frequency - Switching: 85kHz ~ 500kHz
Synchronous Rectifier: Yes
Mounting Type: Surface Mount
Package / Case: 52-WFQFN, 46 Leads, Exposed Pad
Supplier Device Package: 52-QFN (7x8)
detail: Buck Switching Regulator IC Positive Programmable 1V 2 Output 52-WFQFN, 46 Leads, Exposed Pad
