MAX1513EVKIT دیتاشیت

مشخصات دیتاشیت

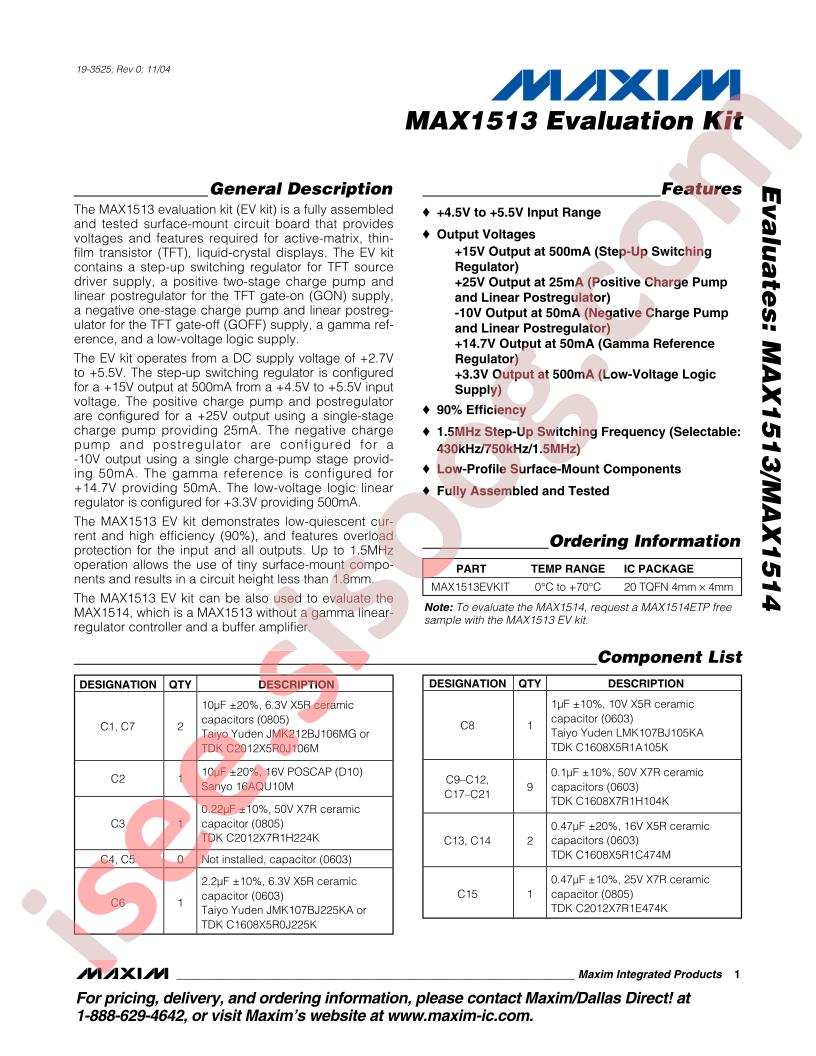

مشاهده دیتاشیت MAX1513EVKIT	دانلود دیتاشیت

Voltage - Input: 4.5V ~ 5.5V
Utilized IC / Part: MAX1513
Current - Output: 500mA, 500mA, 50mA, 50mA, 25mA
Frequency - Switching: 1.5MHz
Board Type: Fully Populated
Part Status: Obsolete
Supplied Contents: Board(s)
Outputs and Type: 5, Non-Isolated
Series: -
Regulator Topology: Boost
Voltage - Output: 3.3V, 14.7V, 15V, 25V, -10V
Main Purpose: Special Purpose DC/DC, LCD Supply
Base Part Number: MAX151
Manufacturer: Maxim Integrated
detail: MAX1513 - Special Purpose DC/DC, LCD Supply 5, Non-Isolated Outputs Evaluation Board
