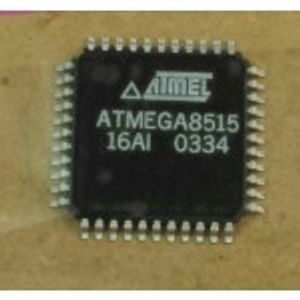

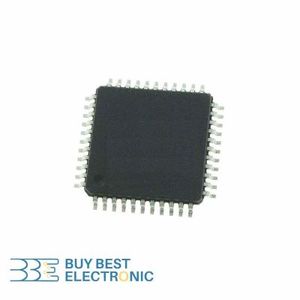

دیتاشیت ATMEGA8515-16PJ

ATMEGA8515(L) Summary

مشخصات دیتاشیت

نام دیتاشیت ATMEGA8515(L) Summary
حجم فایل 232.635 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

دانلود دیتاشیت ATMEGA8515(L) Summary

ATMEGA8515(L) Summary Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: AVR® ATmega
  • Packaging: Tube
  • Part Status: Obsolete
  • Core Processor: AVR
  • Core Size: 8-Bit
  • Speed: 16MHz
  • Connectivity: EBI/EMI, SPI, UART/USART
  • Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
  • Number of I/O: 35
  • Program Memory Size: 8KB (4K x 16)
  • Program Memory Type: FLASH
  • EEPROM Size: 512 x 8
  • RAM Size: 512 x 8
  • Voltage - Supply (Vcc/Vdd): 4.5V ~ 5.5V
  • Data Converters: -
  • Oscillator Type: Internal
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Through Hole
  • Package / Case: 40-DIP (0.600", 15.24mm)
  • Supplier Device Package: 40-PDIP
  • Base Part Number: ATMEGA8515
  • detail: AVR AVR® ATmega Microcontroller IC 8-Bit 16MHz 8KB (4K x 16) FLASH 40-PDIP
