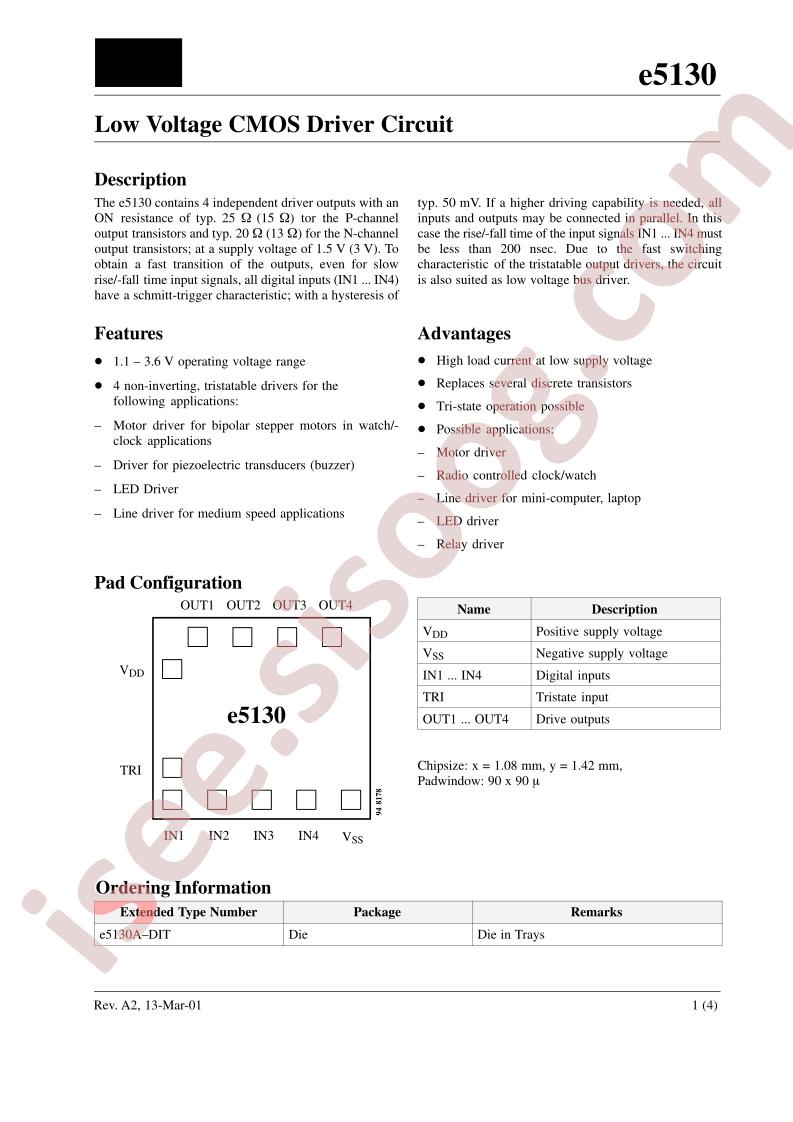

E5130A-DIT Datasheet

E5130

Datasheet specifications

Datasheet's name E5130
File size 27.939 KB
File type pdf
Number of pages 4

Download Datasheet E5130

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: Microchip Technology
  • Series: -
  • Packaging: Tray
  • Part Status: Obsolete
  • Switch Type: Relay, Solenoid Driver
  • Number of Outputs: 4
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side or Low Side
  • Output Type: N/P-Channel
  • Interface: On/Off
  • Voltage - Load: 1.1V ~ 3.6V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 13mA
  • Rds On (Typ): 25mOhm
  • Input Type: Non-Inverting
  • Features: -
  • Fault Protection: -
  • Operating Temperature: -20°C ~ 70°C (TA)
  • Mounting Type: Surface Mount
  • Supplier Device Package: Die
  • Package / Case: Die
  • Base Part Number: E5130A
  • detail: Power Switch/Driver 1:1 N/P-Channel 13mA Die
