LM4041CIM3-ADJ-TR Datasheet

LM4040, LM4041 Datasheet

Datasheet specifications

Datasheet's name LM4040, LM4041 Datasheet
File size 2201.323 KB
File type pdf
Number of pages 30

Download Datasheet LM4040, LM4041 Datasheet

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: Microchip Technology
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Discontinued at Digi-Key
  • Reference Type: Shunt
  • Output Type: Adjustable
  • Voltage - Output (Min/Fixed): 1.233V
  • Voltage - Output (Max): 10V
  • Current - Output: 12mA
  • Tolerance: ±0.5%
  • Temperature Coefficient: 100ppm/°C
  • Noise - 0.1Hz to 10Hz: -
  • Noise - 10Hz to 10kHz: 20µVrms
  • Voltage - Input: -
  • Current - Supply: -
  • Current - Cathode: 65µA
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount

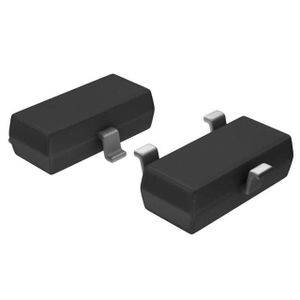

  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: SOT-23-3
  • Base Part Number: LM4041
  • detail: Shunt Voltage Reference IC 10V ±0.5% SOT-23-3
