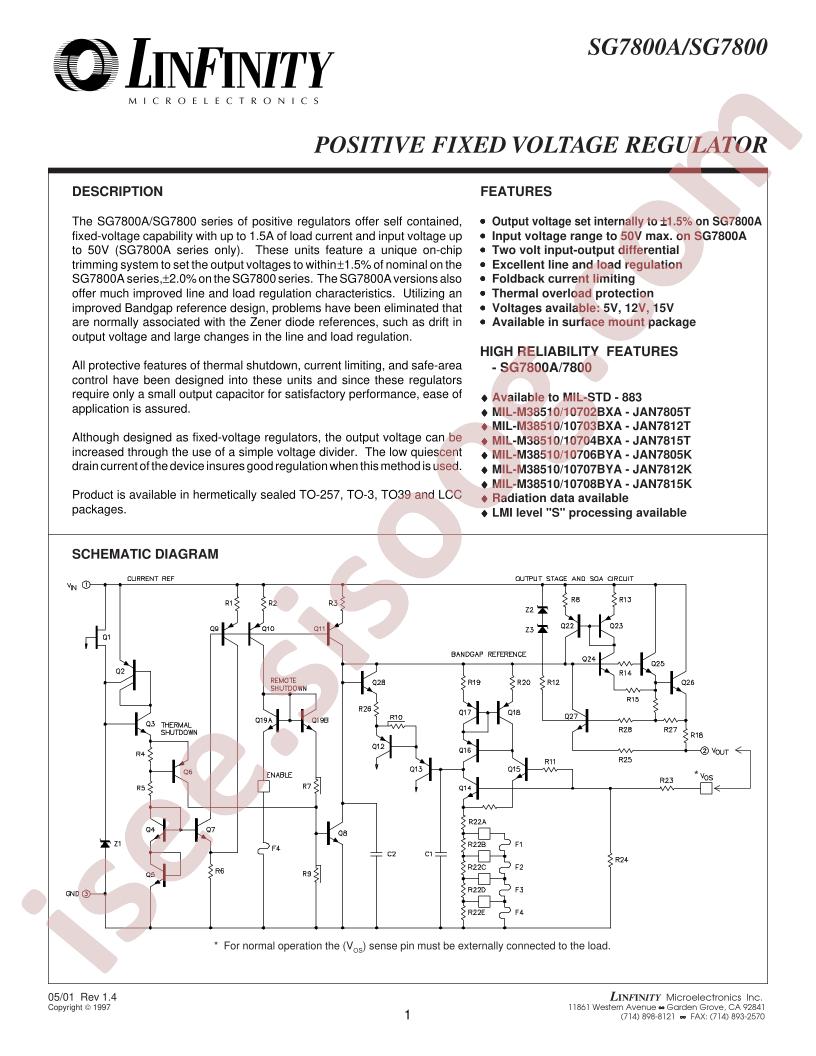

SG7812AT 数据手册
其他文档
SG78xxA/78xx 12 pages
技术规格
- Manufacturer: Microchip Technology
- Series: Military, MIL-STD-883
- Packaging: Bulk
- Part Status: Discontinued at Digi-Key
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 50V
- Voltage - Output (Min/Fixed): 12V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 2.5V @ 500mA
- Current - Output: 1.5A
- Current - Supply (Max): 7mA
- PSRR: 61dB (120Hz)
- Control Features: Current Limit, Enable
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Through Hole
- Package / Case: TO-205AD, TO-39-3 Metal Can
- Supplier Device Package: TO-39
- Base Part Number: SG7812
- detail: Linear Voltage Regulator IC 1 Output 1.5A TO-39
