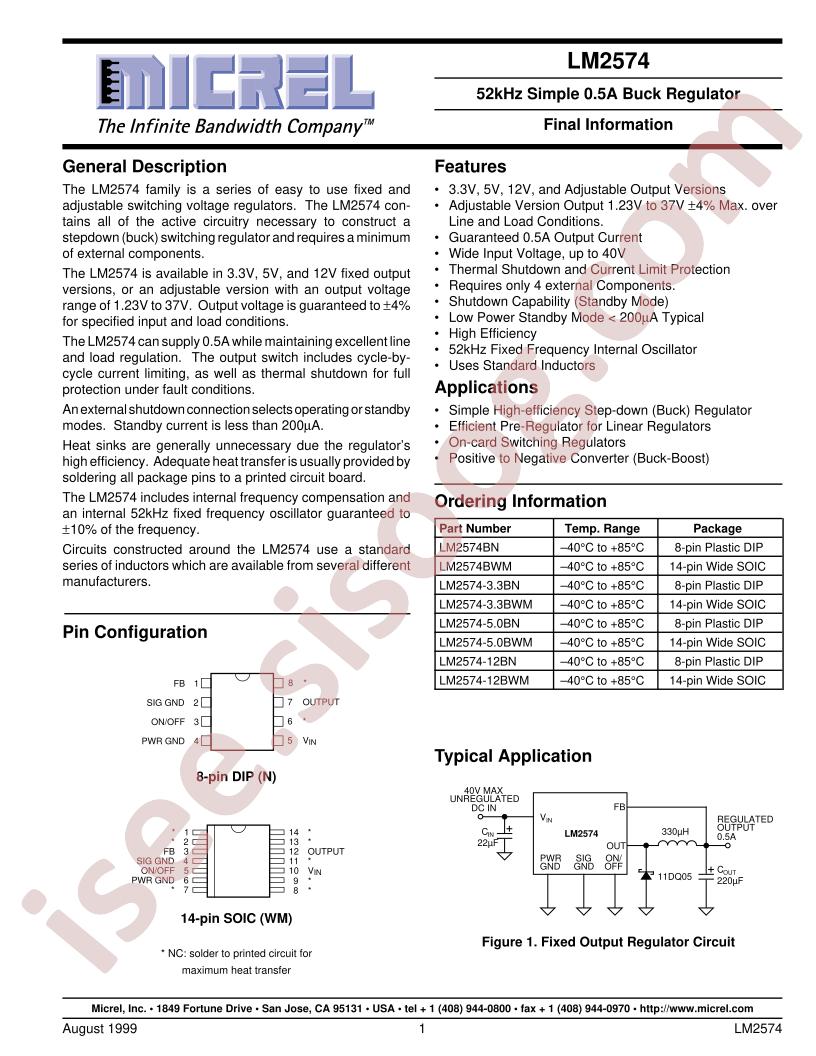

LM2574-3.3BN 数据手册
其他文档
未找到其他文档！
技术规格
- Manufacturer: Microchip Technology
- Series: -
- Packaging: Tube
- Part Status: Obsolete
- Function: Step-Down
- Output Configuration: Positive
- Topology: Buck
- Output Type: Fixed
- Number of Outputs: 1
- Voltage - Input (Min): -
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Output (Max): -
- Current - Output: 500mA
- Frequency - Switching: 52kHz
- Synchronous Rectifier: No
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-PDIP
- Base Part Number: LM2574
- detail: Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 500mA 8-DIP (0.300", 7.62mm)
