دیتاشیت LTC3405AES6-1.375#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3405A-1.375 |
|---|---|
| حجم فایل | 266.995 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 12 |
دانلود دیتاشیت LTC3405A-1.375 |
LTC3405A-1.375 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices LTC3405AES6-1.375#TRPBF
- Output Type: Fixed
- Input Voltage: 2.5V~5.5V
- Output Voltage: 1.375V
- Number of Outputs: 1
- Switching Frequency: 1.5MHz
- Output Current (Max): 300mA
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: Yes

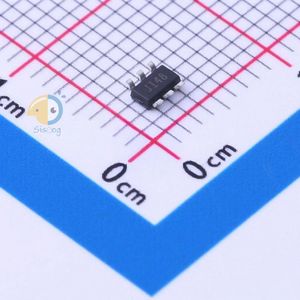

- Package: TSOT-23-6
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 2.5V
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 1.375V
- Voltage - Output (Max): -
- Current - Output: 300mA
- Frequency - Switching: 1.5MHz
- Synchronous Rectifier: Yes
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6 Thin, TSOT-23-6
- Supplier Device Package: TSOT-23-6
- Base Part Number: LTC3405
- detail: Buck Switching Regulator IC Positive Fixed 1.375V 1 Output 300mA SOT-23-6 Thin, TSOT-23-6
