دیتاشیت MIC2075-2BMM-TR

MIC2025, MIC2075

مشخصات دیتاشیت

نام دیتاشیت MIC2025, MIC2075
حجم فایل 1847.464 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

دانلود دیتاشیت MIC2025, MIC2075

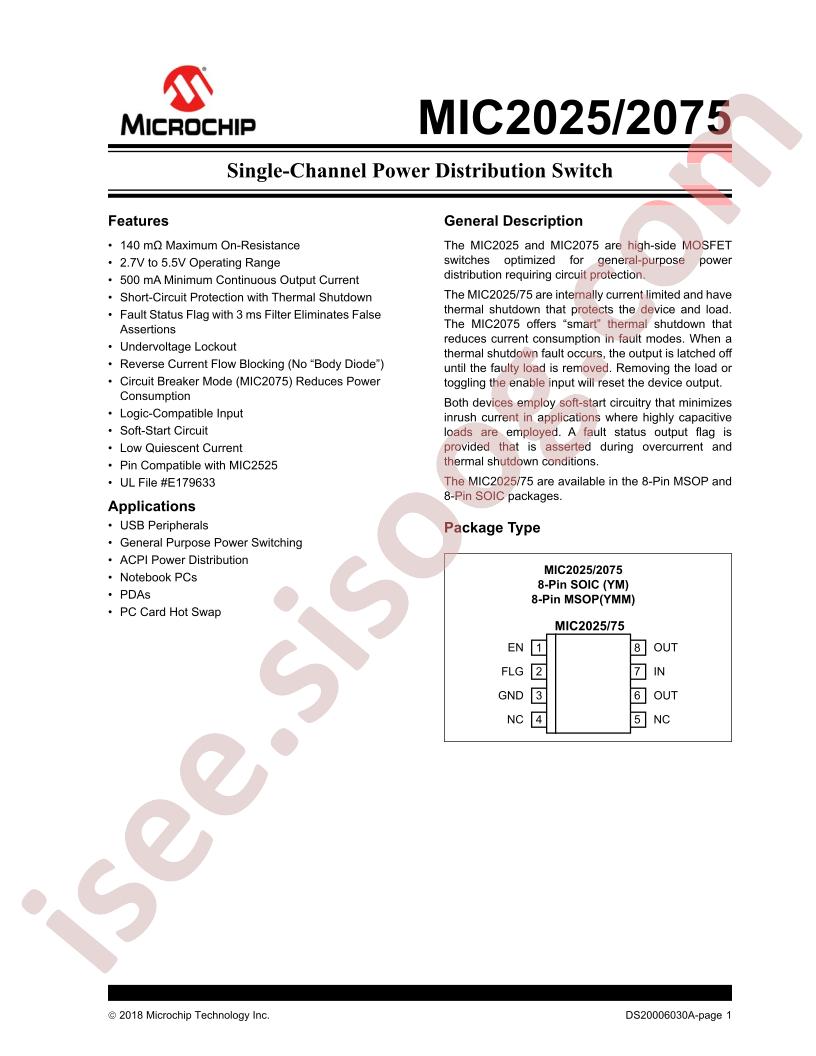

MIC2025, MIC2075 Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: MM8™
  • Packaging: Tape & Reel (TR)
  • Part Status: Discontinued at Digi-Key
  • Switch Type: General Purpose
  • Number of Outputs: 1
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side
  • Output Type: N-Channel
  • Interface: On/Off
  • Voltage - Load: 2.7V ~ 5.5V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 500mA
  • Rds On (Typ): 90mOhm
  • Input Type: Non-Inverting
  • Features: Slew Rate Controlled, Status Flag
  • Fault Protection: Current Limiting (Fixed), Over Temperature, UVLO
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-MSOP
  • Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
  • Base Part Number: MIC2075
  • detail: Power Switch/Driver 1:1 N-Channel 500mA 8-MSOP
