دیتاشیت MIC2561-1BM-TR

MIC2561

مشخصات دیتاشیت

نام دیتاشیت MIC2561
حجم فایل 480.395 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

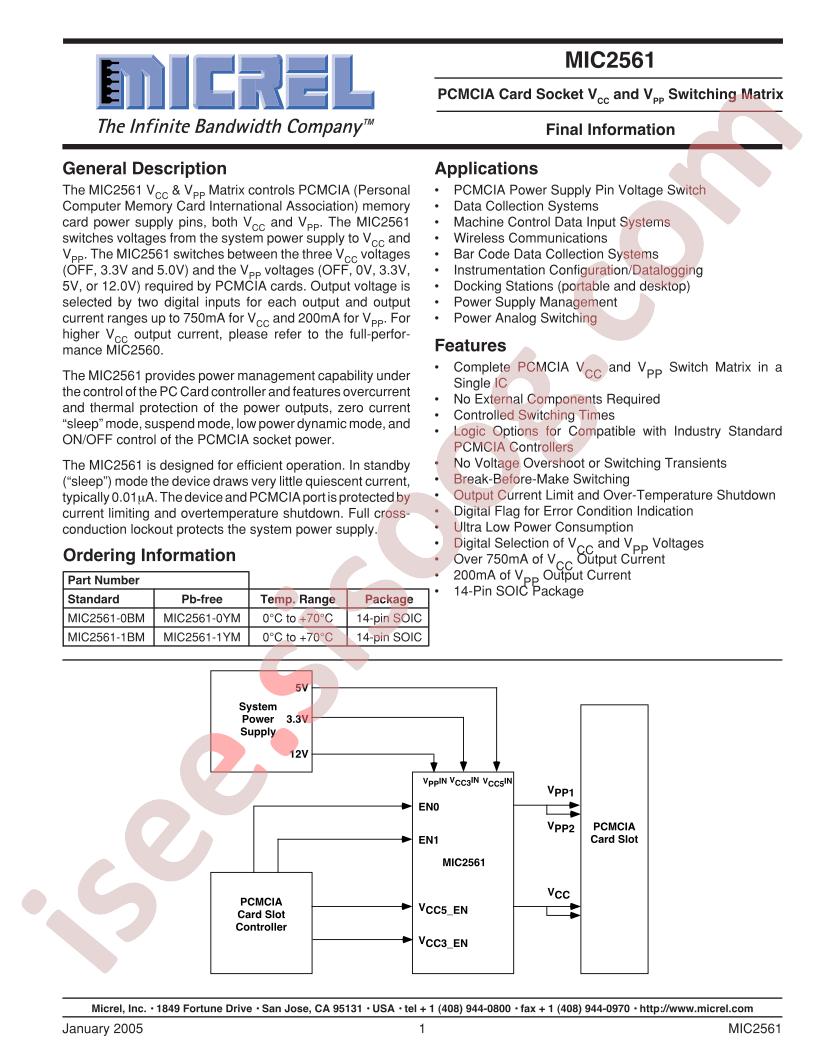

دانلود دیتاشیت MIC2561

MIC2561 Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Discontinued at Digi-Key
  • Switch Type: PCMCIA Switch
  • Number of Outputs: 2
  • Ratio - Input:Output: 3:2
  • Output Configuration: Low Side
  • Output Type: N-Channel
  • Interface: Logic
  • Voltage - Load: 3.3V, 5V, 12V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 200mA
  • Rds On (Typ): 550mOhm
  • Input Type: Non-Inverting
  • Features: Status Flag
  • Fault Protection: Current Limiting (Fixed), Over Temperature
  • Operating Temperature: 0°C ~ 70°C (TA)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 14-SOIC
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Base Part Number: MIC2561
  • detail: Power Switch/Driver 3:2 N-Channel 200mA 14-SOIC
