دیتاشیت LTC3541EDD-1#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3541-1 |
|---|---|
| حجم فایل | 600.754 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 22 |
دانلود دیتاشیت LTC3541-1 |

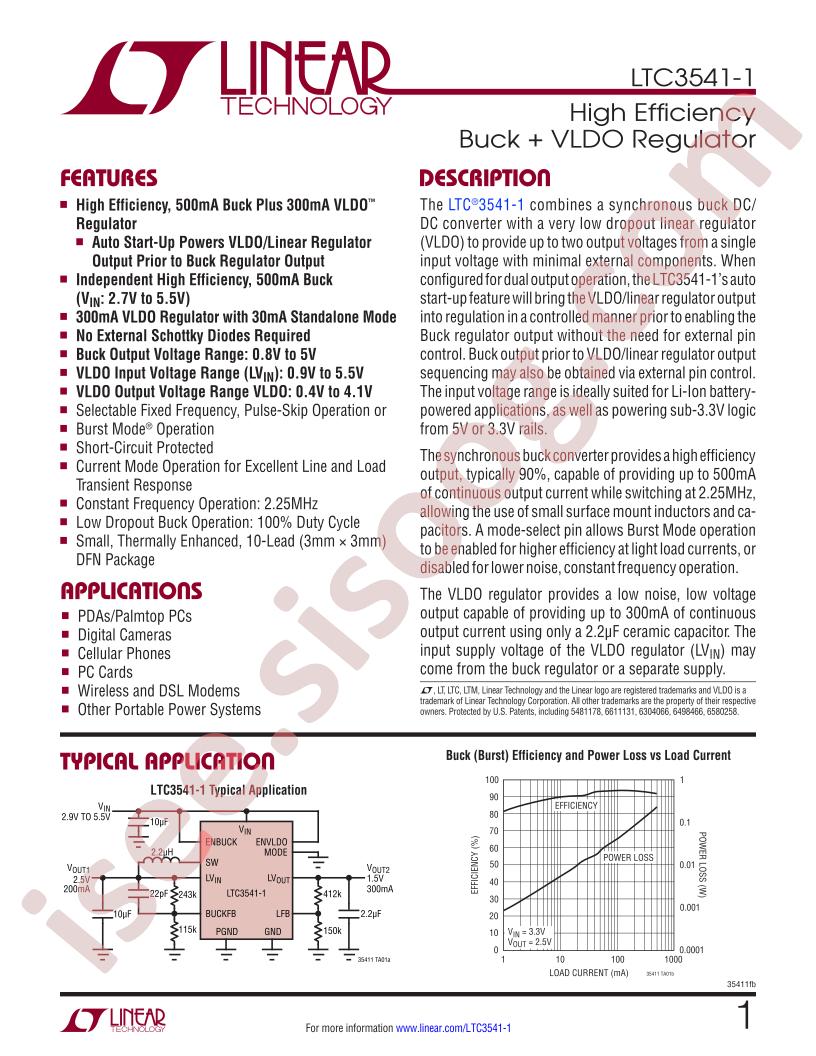

LTC3541-1 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices LTC3541EDD-1#TRPBF
- Output Type: -
- Package: DFN-10-EP(3x3)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Topology: Step-Down (Buck) Synchronous (1), Linear (LDO) (1)
- Number of Outputs: 2
- Frequency - Switching: 2.25MHz
- Voltage/Current - Output 1: 0.8V ~ 5V, 500mA
- Voltage/Current - Output 2: 0.4V ~ 4.1V, 300mA
- Voltage/Current - Output 3: -
- w/LED Driver: No
- w/Supervisor: No
- w/Sequencer: Yes
- Voltage - Supply: 0.9V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 10-WFDFN Exposed Pad
- Supplier Device Package: 10-DFN (3x3)
- Base Part Number: LTC3541
- detail: PMIC - Voltage Regulators - Linear + Switching 2 Output Step-Down (Buck) Synchronous (1), Linear (LDO) (1) 2.25MHz 10-DFN (3x3)
