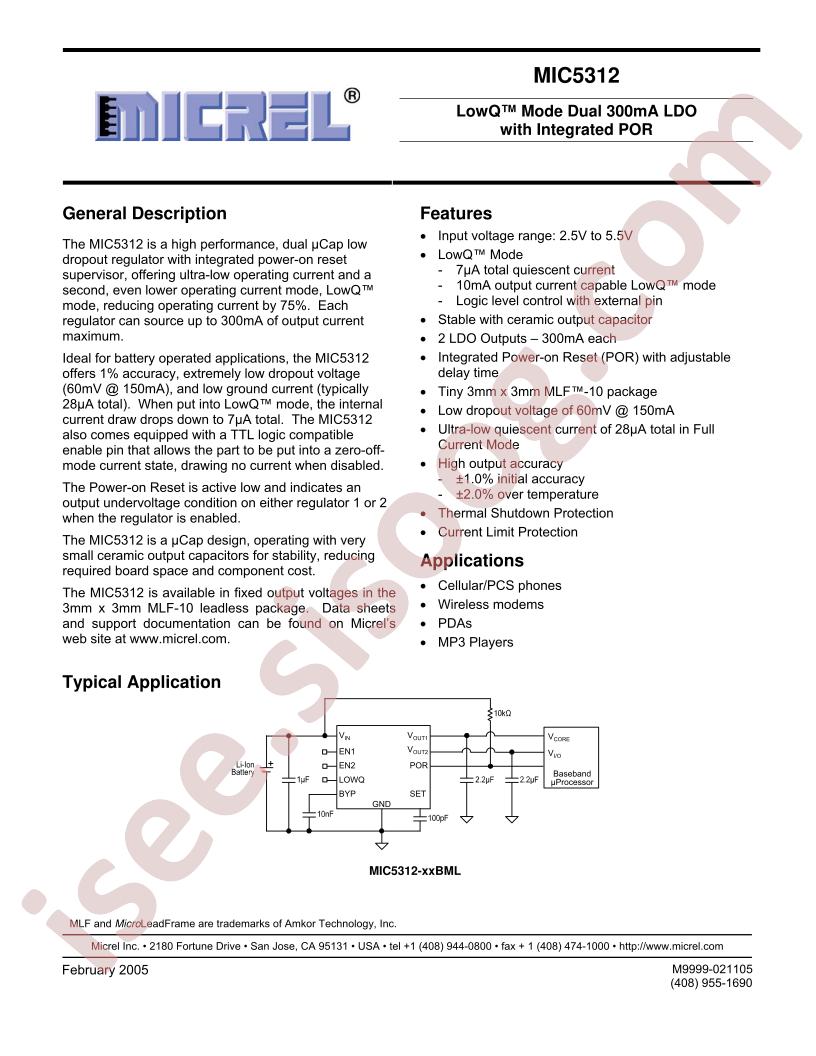

MIC5312-DKBML-TR 数据手册
其他文档
未找到其他文档！
技术规格
- Manufacturer: Microchip Technology
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Discontinued at Digi-Key
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 2
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 1.85V, 2.6V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.24V @ 300mA, 0.24V @ 300mA
- Current - Output: 300mA, 300mA
- Current - Quiescent (Iq): 50µA
- PSRR: 65dB ~ 35dB (1kHz ~ 20kHz)
- Control Features: Enable, Power On Reset
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 10-VFDFN Exposed Pad, 10-MLF®
- Supplier Device Package: 10-MLF® (3x3)
- Base Part Number: MIC5312
- detail: Linear Voltage Regulator IC 2 Output 300mA, 300mA 10-MLF® (3x3)
