دیتاشیت LT1241CN8#PBF
مشخصات دیتاشیت
| نام دیتاشیت | LT1241-45 Datasheet |
|---|---|
| حجم فایل | 1211.668 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |

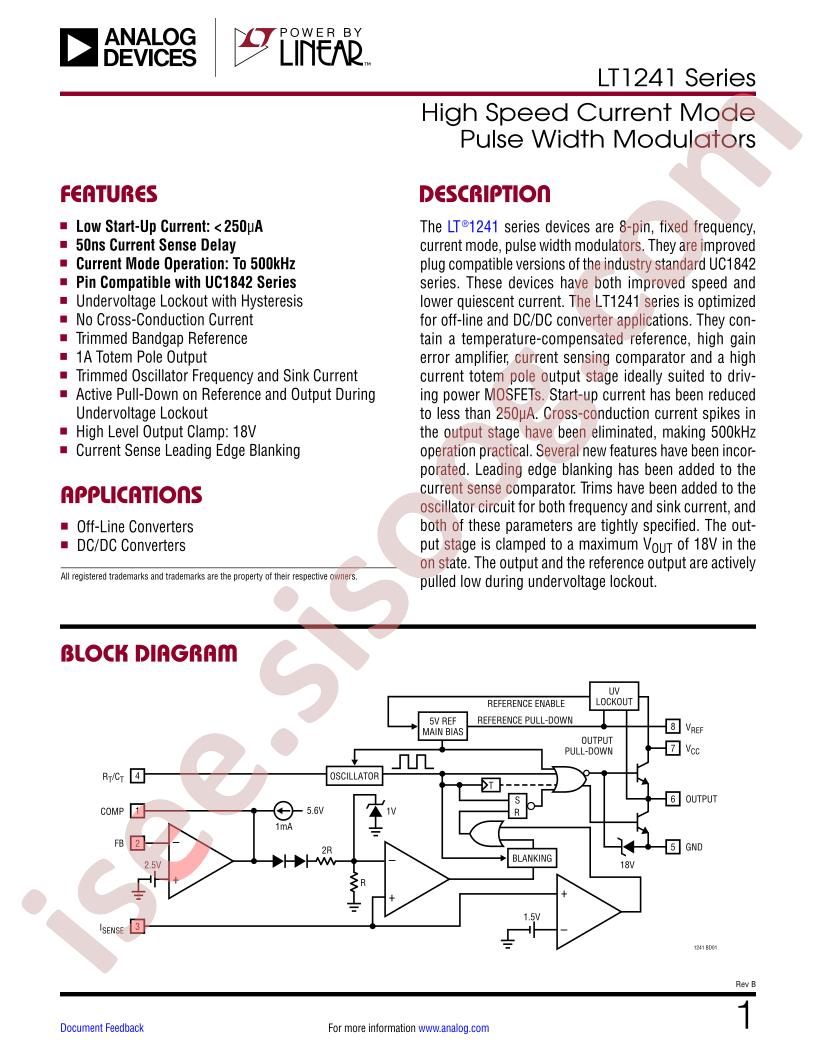

دانلود دیتاشیت LT1241-45 Datasheet |
LT1241-45 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices LT1241CN8#PBF
- Input Voltage: 8.2V~25V
- Duty Cycle (Max): 48%
- Number of Outputs: 1
- Switching Frequency: 500kHz
- Operating Temperature: 0°C~+100°C@(TJ)
- Synchronous Rectification: NO
- Package: PDIP-8
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Type: Transistor Driver
- Output Configuration: Positive, Isolation Capable
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 8.2V ~ 25V
- Frequency - Switching: 500kHz
- Synchronous Rectifier: No
- Clock Sync: No
- Serial Interfaces: -
- Control Features: Frequency Control
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-PDIP
- Base Part Number: LT1241
- detail: Buck Regulator Positive, Isolation Capable Output Step-Down DC-DC Controller IC 8-PDIP
