دیتاشیت LTC3209EUF-2#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3209-1/-2 |
|---|---|
| حجم فایل | 262.124 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت LTC3209-1/-2 |

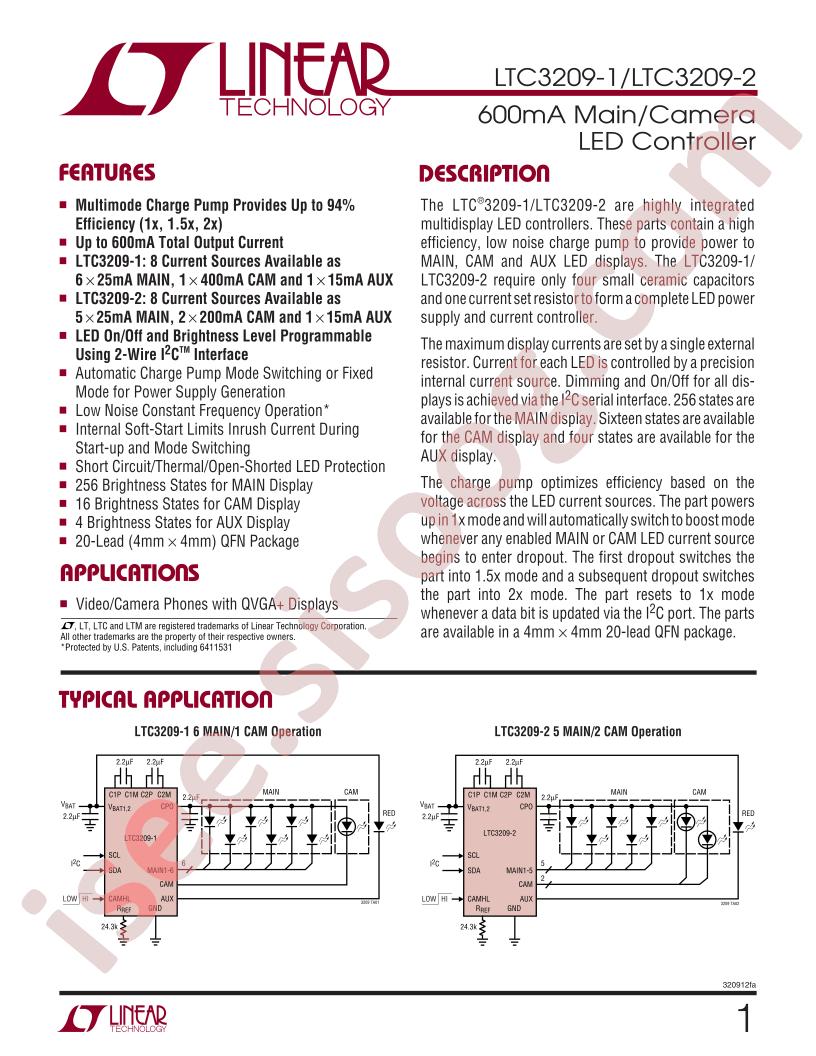

LTC3209-1/-2 Datasheet |
|---|
مشخصات
- RoHS: true
- Type: DC-DCVoltage Stabilizer
- Dimming: I2C
- Category: Nixie Tube Driver/LED Driver/LED Drivers
- Channels: 8
- Topology: Switched capacitor(充电泵)
- Datasheet: Analog Devices LTC3209EUF-2#TRPBF
- Input Voltage: 2.9V~4.5V
- Output Current: 600mA
- Switch Frequency: 850kHz
- Operating temperature: -40°C~+85°C
- Package: QFN-20-EP(4x4)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Internal Switch(s): Yes
- Number of Outputs: 8
- Voltage - Supply (Min): 2.9V
- Voltage - Supply (Max): 4.5V
- Voltage - Output: -
- Current - Output / Channel: 600mA (Total)
- Frequency: 850kHz
- Applications: -
- Mounting Type: Surface Mount
- Package / Case: 20-WFQFN Exposed Pad
- Supplier Device Package: 20-QFN (4x4)
- Base Part Number: LTC3209
- detail: LED Driver IC 8 Output DC DC Regulator Switched Capacitor (Charge Pump) I²C Dimming 600mA (Total) 20-QFN (4x4)
