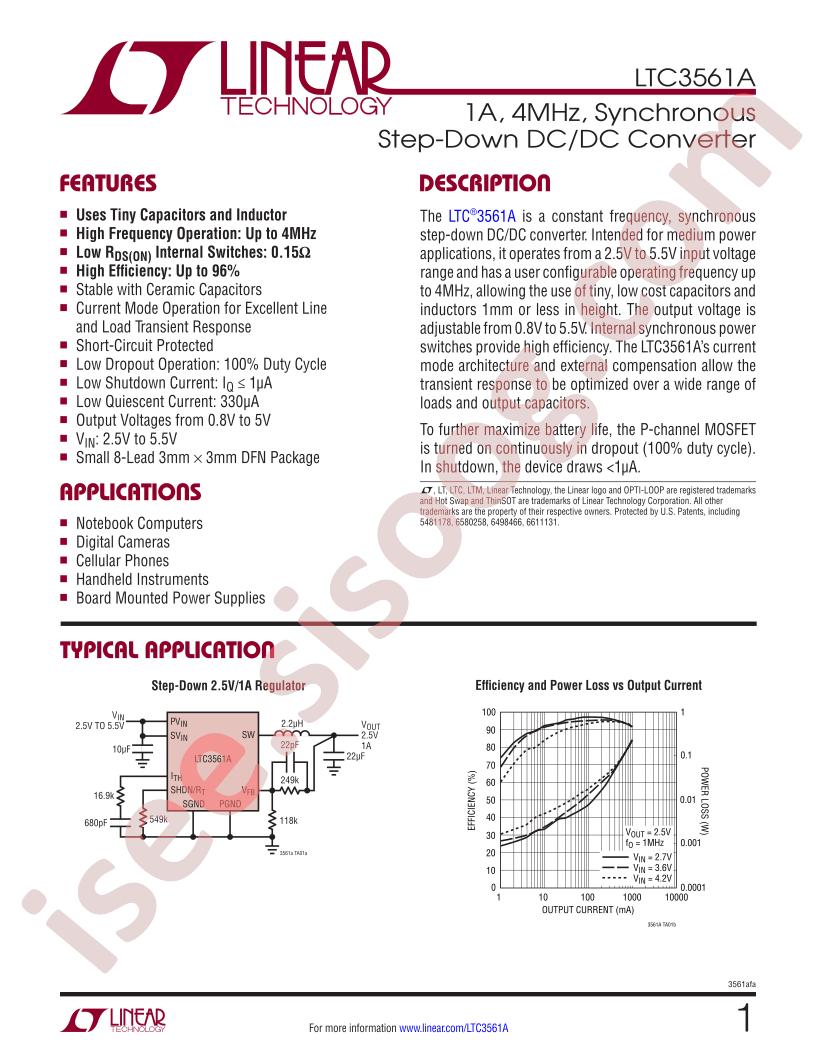

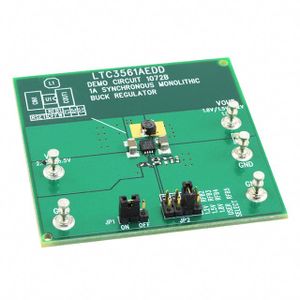

دیتاشیت LTC3561AIDD#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3561A |
|---|---|
| حجم فایل | 364.368 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت LTC3561A |
LTC3561A Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices LTC3561AIDD#TRPBF
- Output Type: Adjustable
- Input Voltage: 2.5V~5.5V
- Output Voltage: 0.8V~5V
- Number of Outputs: 1
- Switching Frequency: 2.5MHz
- Output Current (Max): 1A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: DFN-8(3x3)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 2.5V
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 0.8V
- Voltage - Output (Max): 5V
- Current - Output: 1A
- Frequency - Switching: 2.5MHz
- Synchronous Rectifier: Yes
- Mounting Type: Surface Mount
- Package / Case: 8-WFDFN Exposed Pad
- Supplier Device Package: 8-DFN (3x3)
- Base Part Number: LTC3561
- detail: Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1A 8-WFDFN Exposed Pad
