دیتاشیت LTC3851IMSE-1#TRPBF

مشخصات دیتاشیت

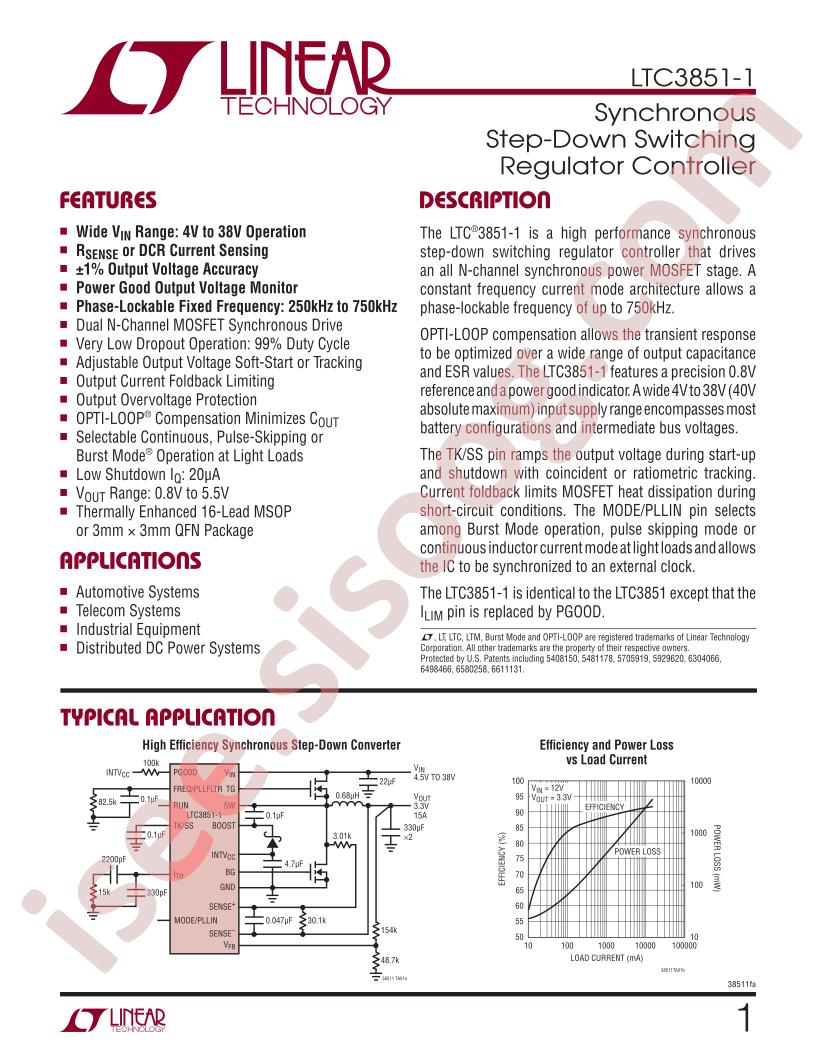

دانلود دیتاشیت LTC3851-1	LTC3851-1 Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Function: Step-down type
Topology: Step-down
Datasheet: Analog Devices LTC3851IMSE-1#TRPBF
Input Voltage: 4V~38V
Duty Cycle (Max): 99%
Number of Outputs: 1
Switching Frequency: 750kHz
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: Yes
Package: MSOP-16-EP
Manufacturer: Analog Devices
Series: -
Packaging: Tape & Reel (TR)
Part Status: Active
Output Type: Transistor Driver
Output Configuration: Positive
Output Phases: 1
Voltage - Supply (Vcc/Vdd): 4V ~ 38V
Frequency - Switching: 250kHz ~ 750kHz
Synchronous Rectifier: Yes
Clock Sync: No
Serial Interfaces: -
Control Features: Enable, Frequency Control, Power Good, Soft Start, Tracking
Mounting Type: Surface Mount
Package / Case: 16-TFSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package: 16-MSOP-EP
Base Part Number: LTC3851
detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-MSOP-EP
