- دیتاشیت LTC1517ES5-3.3#TRMPBF
دیتاشیت LTC1517ES5-3.3#TRMPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC1517-3.3 |
|---|---|
| حجم فایل | 159.208 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 8 |
دانلود دیتاشیت LTC1517-3.3 |

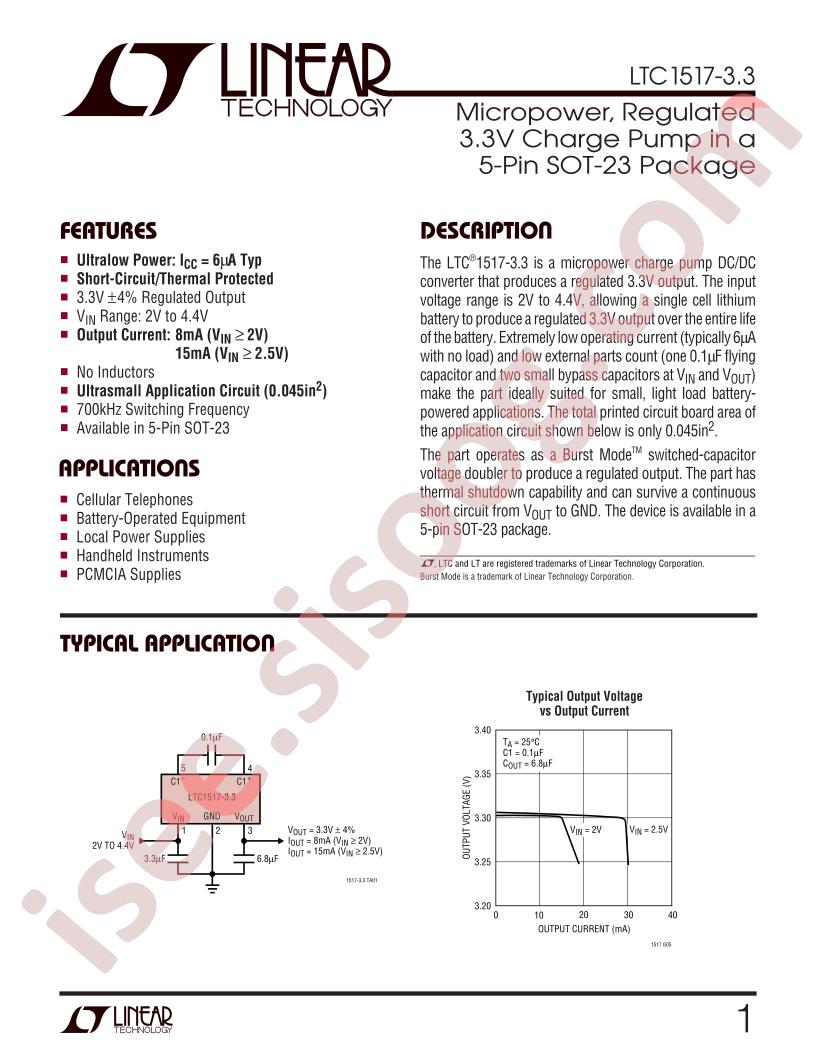

LTC1517-3.3 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: boost converterType
- Topology: -
- Datasheet: Analog Devices LTC1517ES5-3.3#TRMPBF
- Output Type: Fixed
- Input Voltage: 2V~4.4V
- Output Voltage: 3.3V
- Number of Outputs: 1
- Switching Frequency: 700kHz
- Output Current (Max): 15mA
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: NO
- Package: SOT-5
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 2V
- Voltage - Input (Max): 4.4V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Output (Max): -
- Current - Output: 15mA
- Frequency - Switching: 700kHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount
- Package / Case: SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package: SOT-23-5
- Base Part Number: LTC1517
- detail: Charge Pump Switching Regulator IC Positive Fixed 3.3V 1 Output 15mA SOT-23-5 Thin, TSOT-23-5
