MAX1479ATE+C2R Datasheet

MAX1479

Datasheet specifications

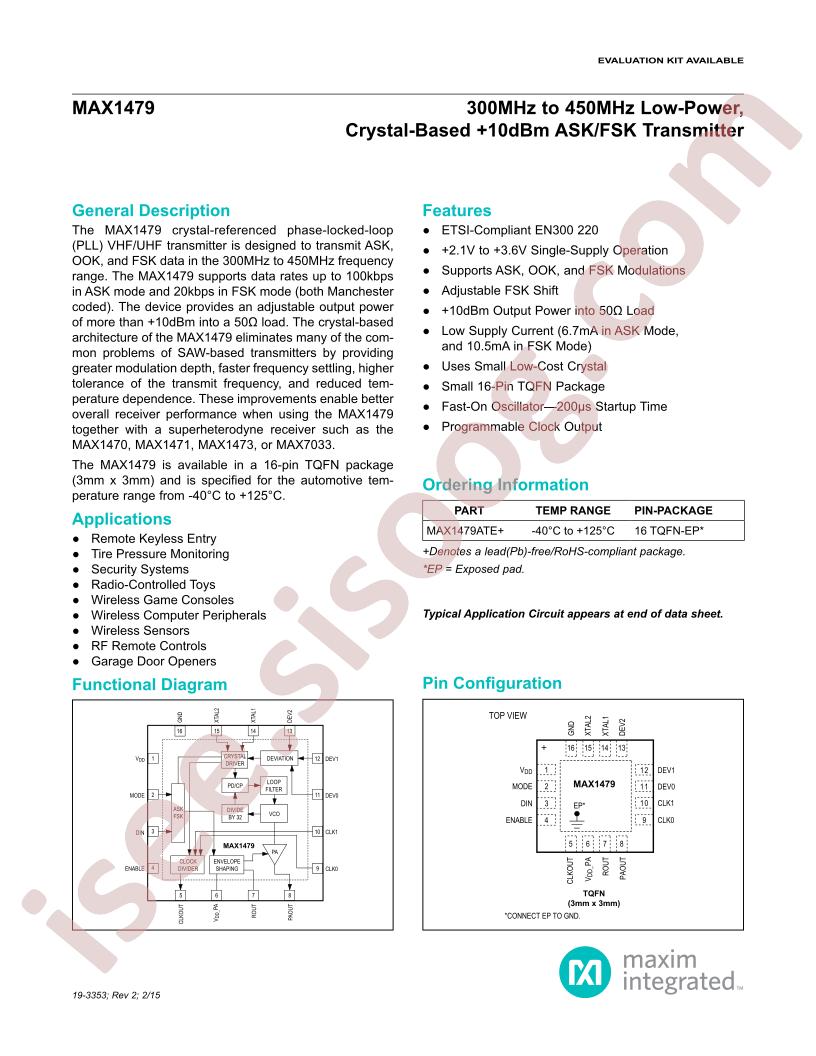

Datasheet's name MAX1479
File size 640.359 KB
File type pdf
Number of pages 10

Download Datasheet MAX1479

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Applications: ISM, Garage Door Openers, RKE
  • Power - Output: 2.7dBm ~ 16.1dBm
  • Antenna Connector: PCB, Surface Mount
  • Supplier Device Package: 16-TQFN (3x3)
  • Data Interface: PCB, Surface Mount
  • Memory Size: -
  • Package / Case: 16-WFQFN Exposed Pad
  • Part Status: Active
  • Voltage - Supply: 2.1V ~ 3.6V
  • Operating Temperature: -40°C ~ 125°C
  • Series: -
  • Features: -
  • Mounting Type: Surface Mount
  • Frequency: 300MHz ~ 450MHz
  • Modulation or Protocol: ASK, FSK, OOK
  • Data Rate (Max): 100kbps
  • Packaging: Tube
  • Current - Transmitting: 6.7mA ~ 10.5mA
  • Base Part Number: MAX1479
  • Manufacturer: Maxim Integrated
  • detail: RF Transmitter ASK, FSK, OOK 300MHz ~ 450MHz 2.7dBm ~ 16.1dBm 100kbps PCB, Surface Mount Antenna 16-WFQFN Exposed Pad
