دیتاشیت LTC3315BHV#TRMPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3315B |
|---|---|
| حجم فایل | 1815.818 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 22 |

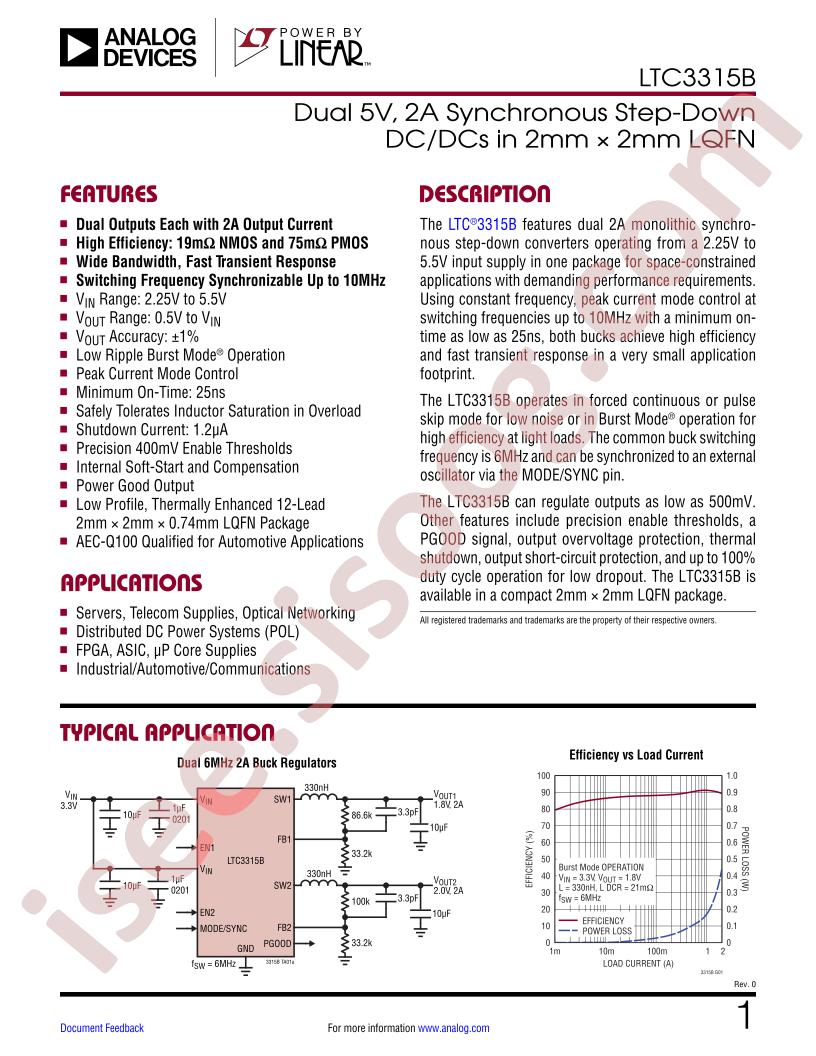

دانلود دیتاشیت LTC3315B |
LTC3315B Datasheet |
|---|
مشخصات
- Manufacturer: Linear Technology/Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Function: Step-Down
- Output Configuration: Positive
- Topology: Buck
- Output Type: Adjustable
- Number of Outputs: 2
- Voltage - Input (Min): 2.25V
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 0.5V
- Voltage - Output (Max): 5.5V
- Current - Output: 2A, 2A
- Frequency - Switching: 6MHz
- Synchronous Rectifier: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 12-VFQFN Exposed Pad
- Supplier Device Package: 12-LQFN (2x2)
- detail: Buck Switching Regulator IC Positive Adjustable 0.5V 2 Output 2A, 2A 12-VFQFN Exposed Pad
