دیتاشیت LT3663EDCB-3.3#TRMPBF
مشخصات دیتاشیت
| نام دیتاشیت | LT3663EDCB-3.3#TRMPBF |
|---|---|
| حجم فایل | 93.132 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
دانلود دیتاشیت LT3663EDCB-3.3#TRMPBF |

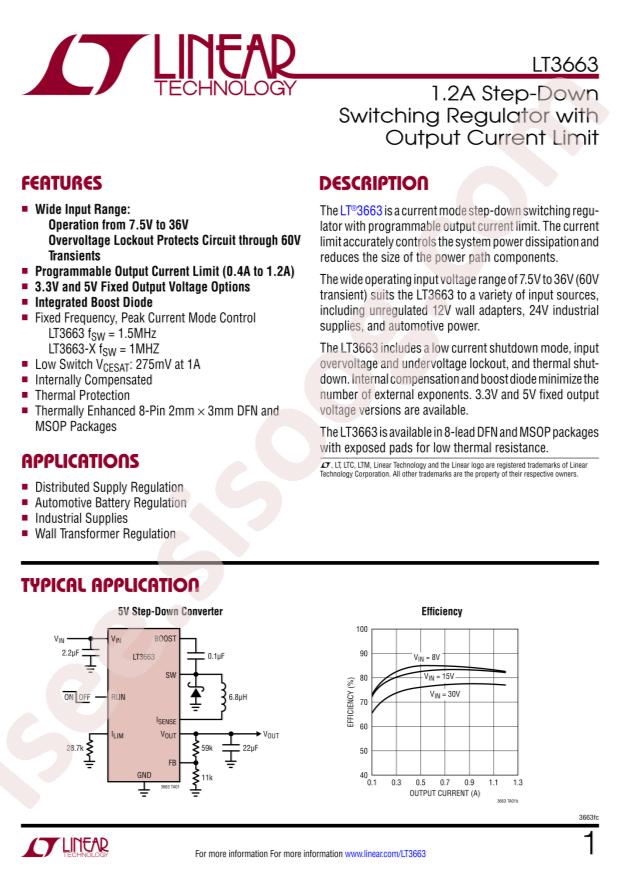

LT3663EDCB-3.3#TRMPBF Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices LT3663EDCB-3.3#TRMPBF
- Output Type: Fixed
- Input Voltage: 7.5V~36V
- Output Voltage: 3.3V
- Number of Outputs: 1
- Switching Frequency: 1MHz
- Output Current (Max): 1.2A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: DFN-8(2x3)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Obsolete
- Output Configuration: Positive
- Voltage - Input (Min): 7.5V
- Voltage - Input (Max): 36V
- Voltage - Output (Min/Fixed): 0.8V
- Voltage - Output (Max): 6V
- Current - Output: 1.2A
- Frequency - Switching: 1.5MHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount
- Package / Case: 8-WFDFN Exposed Pad
- Supplier Device Package: 8-DFN (2x3)
- detail: Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1.2A 8-WFDFN Exposed Pad
