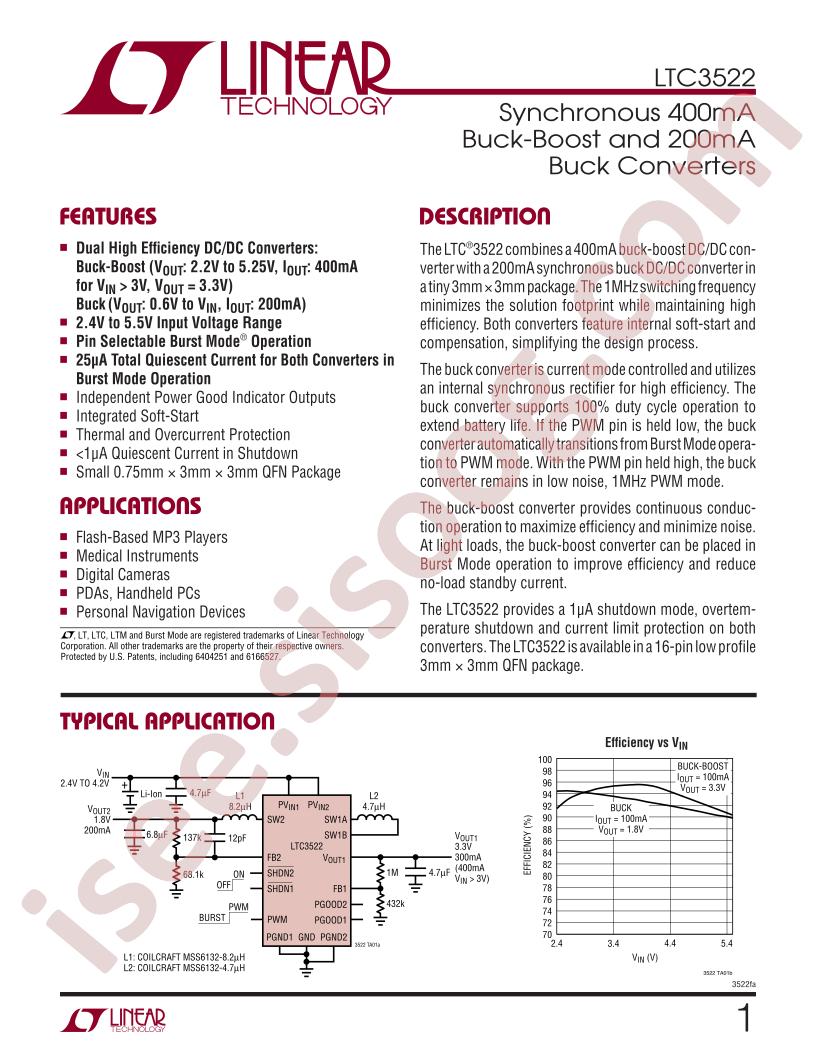

LTC3522 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LTC3522
|
|
حجم فایل
|
283.656
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
20
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type;Buck-boost type
-
Topology:
Step-down;Step-down-Boost
-
Datasheet:
Analog Devices LTC3522EUD#TRPBF
-
Output Type:
Adjustable
-
Input Voltage:
2.4V~5.5V
-
Output Voltage:
0.6V~5.5V
-
Number of Outputs:
2
-
Switching Frequency:
1.07MHz
-
Output Current (Max):
200mA;400mA
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
Yes
-
Package:
QFN-16-EP(3x3)
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Voltage - Input (Min):
2.4V
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Min/Fixed):
0.6V
-
Voltage - Output (Max):
5.5V
-
Current - Output:
200mA, 400mA
-
Frequency - Switching:
1.07MHz
-
Synchronous Rectifier:
Yes
-
Mounting Type:
Surface Mount
-
Package / Case:
16-WFQFN Exposed Pad
-
Supplier Device Package:
16-QFN-EP (3x3)
-
Base Part Number:
LTC3522
-
detail:
Buck, Buck-Boost Switching Regulator IC Positive Adjustable 0.6V 2 Output 200mA, 400mA 16-WFQFN Exposed Pad
