LT8711EFE#TRPBF دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت LT8711EFE#TRPBF	دانلود دیتاشیت

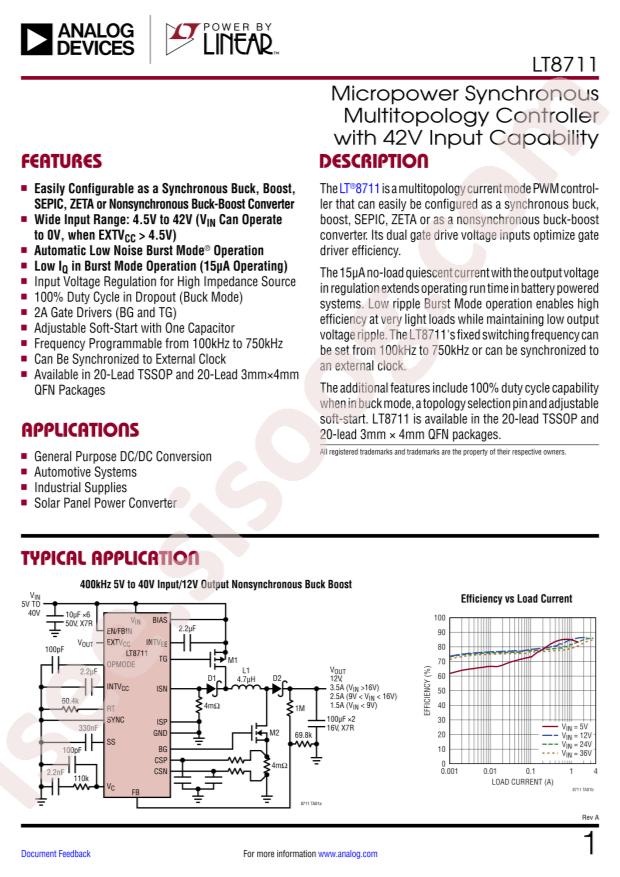

LT8711 38 pages

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Function: boost converterType;Step-down type
Topology: Step-down;Boost;Step-down-Boost;SEPIC
Datasheet: Analog Devices LT8711EFE#TRPBF
Input Voltage: 4.5V~42V
Duty Cycle (Max): 100%
Number of Outputs: 1
Switching Frequency: 750kHz
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: NO
Package: TSSOP-20
Manufacturer: Analog Devices
Series: -
Packaging: Tape & Reel (TR)
Part Status: Active
Output Type: PWM
Output Configuration: Positive
Output Phases: -
Voltage - Supply (Vcc/Vdd): 4.5V ~ 42V
Frequency - Switching: 100kHz ~ 750kHz
Synchronous Rectifier: No
Clock Sync: Yes
Serial Interfaces: -
Control Features: Enable, Frequency Control, Soft Start
Mounting Type: Surface Mount
Package / Case: 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package: 20-TSSOP
Base Part Number: LT8711
detail: Buck, Boost, Buck-Boost, SEPIC Regulator Positive Output Step-Up, Step-Down DC-DC Controller IC 20-TSSOP
