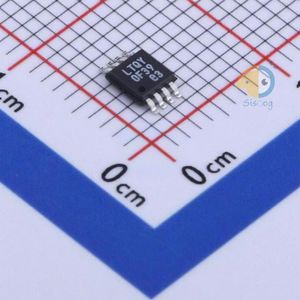

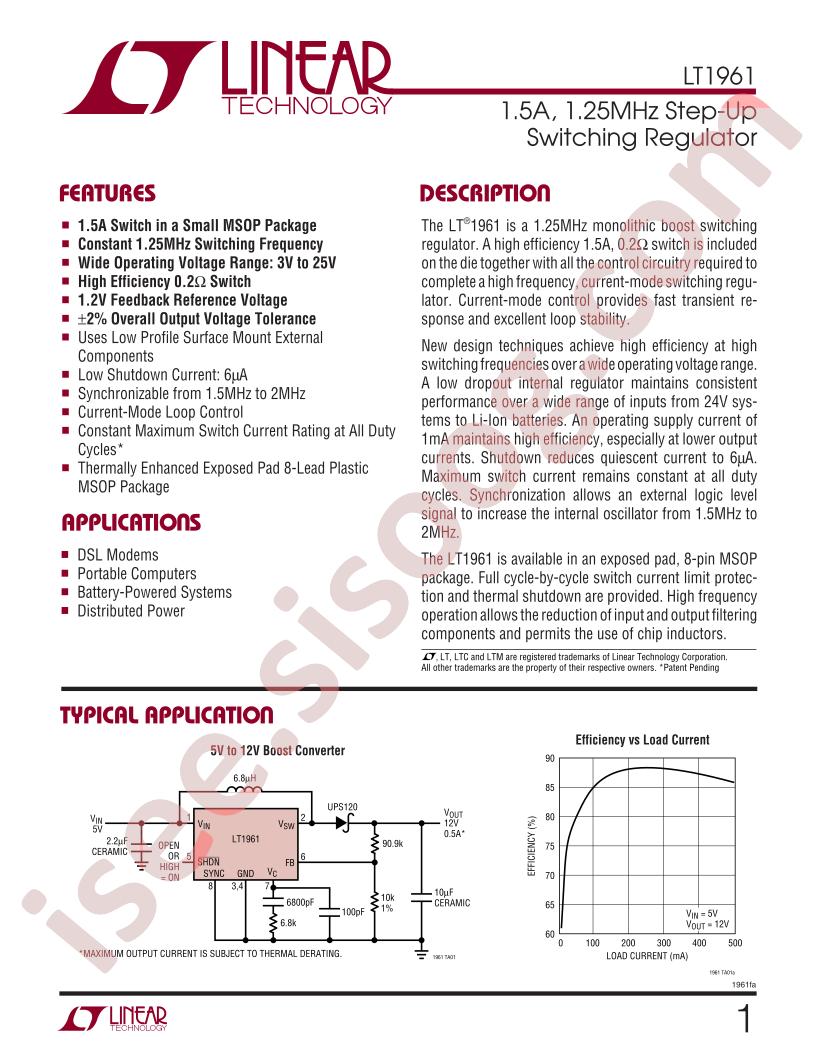

LT1961 Datasheet دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LT1961 Datasheet
|
|
حجم فایل
|
163.455
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
16
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
boost converterType;Buck-boost type
-
Topology:
Boost;Flyback;SEPIC
-
Datasheet:
Analog Devices LT1961IMS8E#TRPBF
-
Output Type:
Adjustable
-
Input Voltage:
3V~25V
-
Output Voltage:
1.2V~35V
-
Number of Outputs:
1
-
Switching Frequency:
1.25MHz
-
Output Current (Max):
1.5A
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
NO
-
Package:
MSOP-8-EP
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Voltage - Input (Min):
3V
-
Voltage - Input (Max):
25V
-
Voltage - Output (Min/Fixed):
1.2V
-
Voltage - Output (Max):
35V (Switch)
-
Current - Output:
1.5A (Switch)
-
Frequency - Switching:
1.25MHz
-
Synchronous Rectifier:
No
-
Mounting Type:
Surface Mount
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
-
Supplier Device Package:
8-MSOP-EP
-
Base Part Number:
LT1961
-
detail:
Boost, Flyback, SEPIC Switching Regulator IC Positive Adjustable 1.2V 1 Output 1.5A (Switch) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
