دیتاشیت LTC3894EFE#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3894 Datasheet* |
|---|---|
| حجم فایل | 2019.11 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 36 |

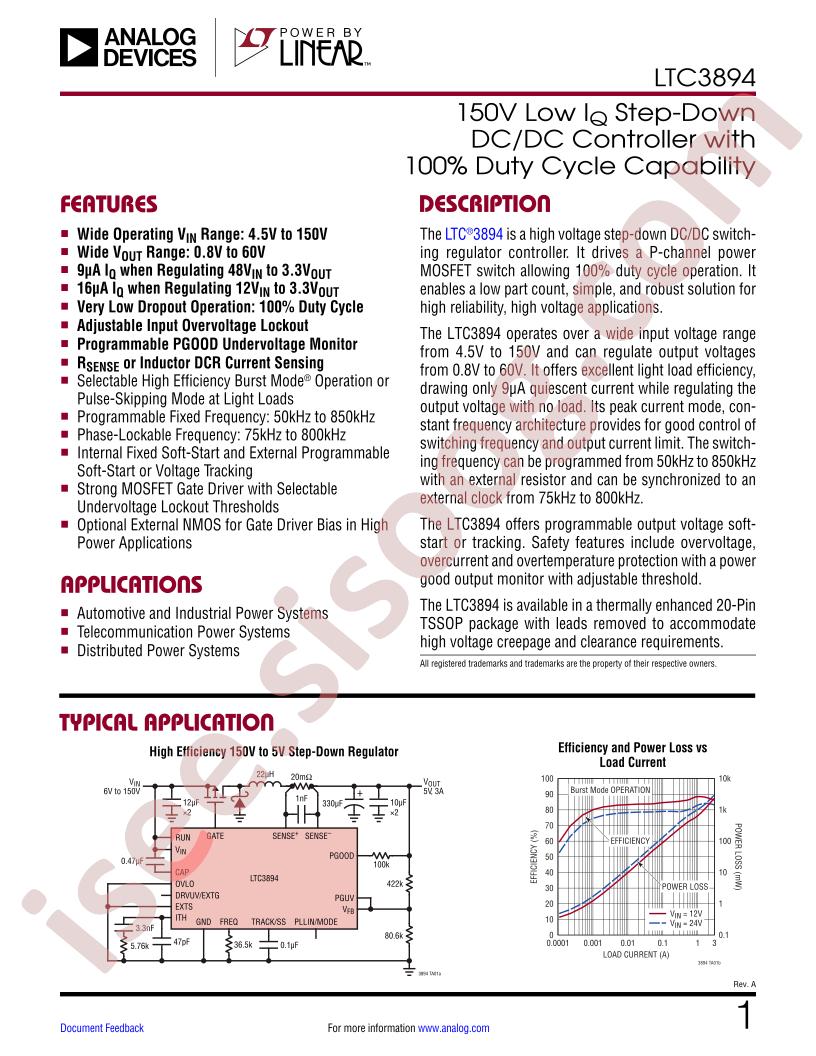

دانلود دیتاشیت LTC3894 Datasheet* |
LTC3894 Datasheet* Datasheet |
|---|
مشخصات
- Manufacturer: Linear Technology/Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Type: Transistor Driver
- Function: Step-Down
- Output Configuration: Positive
- Topology: Buck
- Number of Outputs: 1
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 4.5V ~ 150V
- Frequency - Switching: 50kHz ~ 850kHz
- Duty Cycle (Max): 100%
- Synchronous Rectifier: Yes
- Clock Sync: Yes
- Serial Interfaces: -
- Control Features: Current Limit, Enable, Frequency Control, Power Good, Soft Start
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad
- Supplier Device Package: 20-TSSOP-EP
- detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 20-TSSOP-EP
