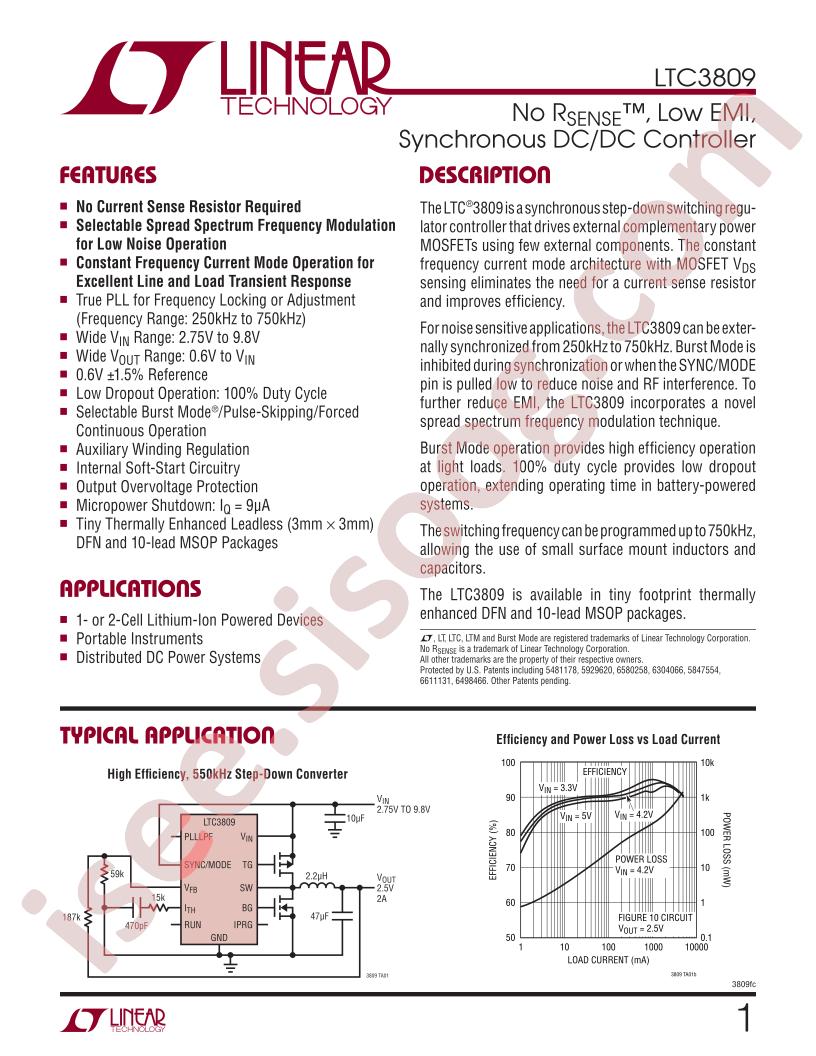

دیتاشیت LTC3809EDD#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت |
LTC3809
|
| حجم فایل |
298.22
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
24
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Controllers
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Analog Devices LTC3809EDD#TRPBF
-
Input Voltage:
2.75V~9.8V
-
Duty Cycle (Max):
100%
-
Number of Outputs:
1
-
Switching Frequency:
635kHz
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
Yes
-
Package:
DFN-10(3x3)
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Output Type:
Transistor Driver
-
Output Configuration:
Positive
-
Output Phases:
1
-
Voltage - Supply (Vcc/Vdd):
2.75V ~ 9.8V
-
Frequency - Switching:
460kHz ~ 635kHz
-
Synchronous Rectifier:
Yes
-
Clock Sync:
Yes
-
Serial Interfaces:
-
-
Control Features:
Enable
-
Mounting Type:
Surface Mount
-
Package / Case:
10-WFDFN Exposed Pad
-
Supplier Device Package:
10-DFN (3x3)
-
Base Part Number:
LTC3809
-
detail:
Buck Regulator Positive Output Step-Down DC-DC Controller IC 10-DFN (3x3)
