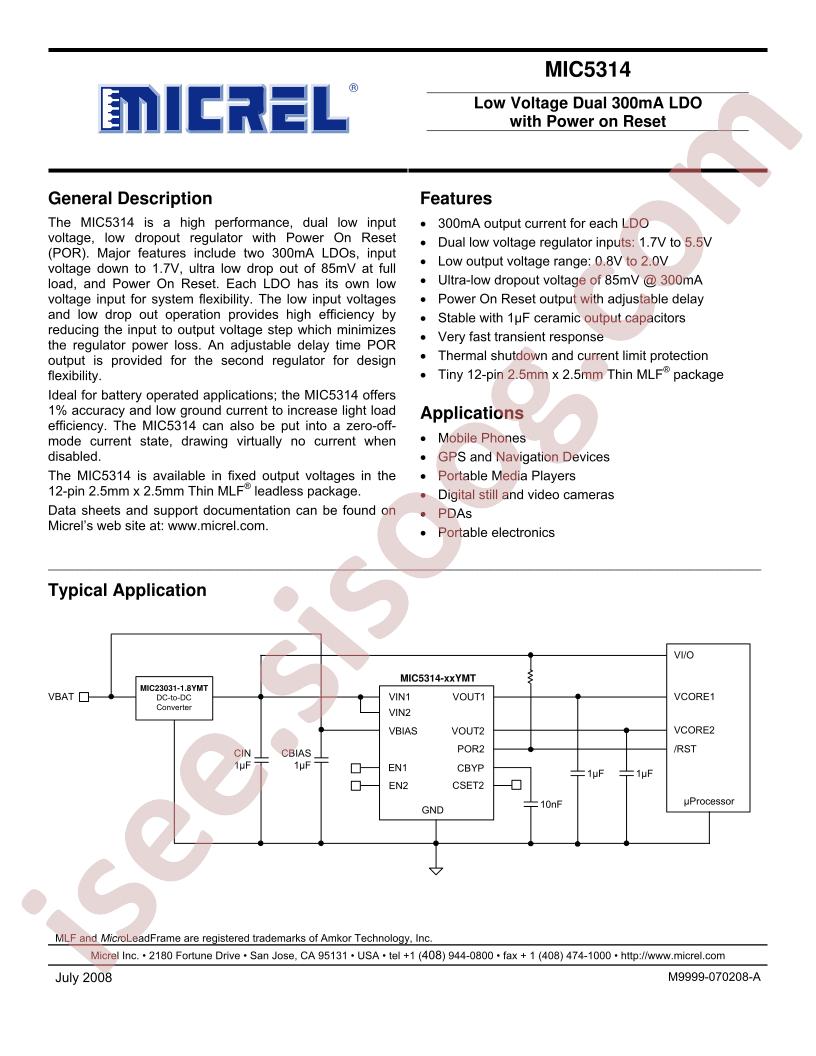

دیتاشیت MIC5314-F4YMT-TR
مشخصات دیتاشیت
| نام دیتاشیت |
MIC5314
|
| حجم فایل |
365.927
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
14
|
مشخصات
-
Manufacturer:
Microchip Technology
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Output Configuration:
Positive
-
Output Type:
Fixed
-
Number of Regulators:
2
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Min/Fixed):
1.2V, 1.5V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.2V @ 300mA, 0.2V @ 300mA
-
Current - Output:
300mA, 300mA
-
Current - Quiescent (Iq):
12µA
-
PSRR:
65dB ~ 40dB (1kHz ~ 20kHz)
-
Control Features:
Enable, Power On Reset
-
Protection Features:
Over Current, Over Temperature
-
Operating Temperature:
-40°C ~ 125°C
-
Mounting Type:
Surface Mount
-
Package / Case:
12-UFDFN Exposed Pad, 12-TMLF®
-
Supplier Device Package:
12-TMLF® (2.5x2.5)
-
Base Part Number:
MIC5314
-
detail:
Linear Voltage Regulator IC 2 Output 300mA, 300mA 12-TMLF® (2.5x2.5)
