دیتاشیت LTC2611IDD-1#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC2601,11,21 Datasheet |
|---|---|
| حجم فایل | 247.142 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |

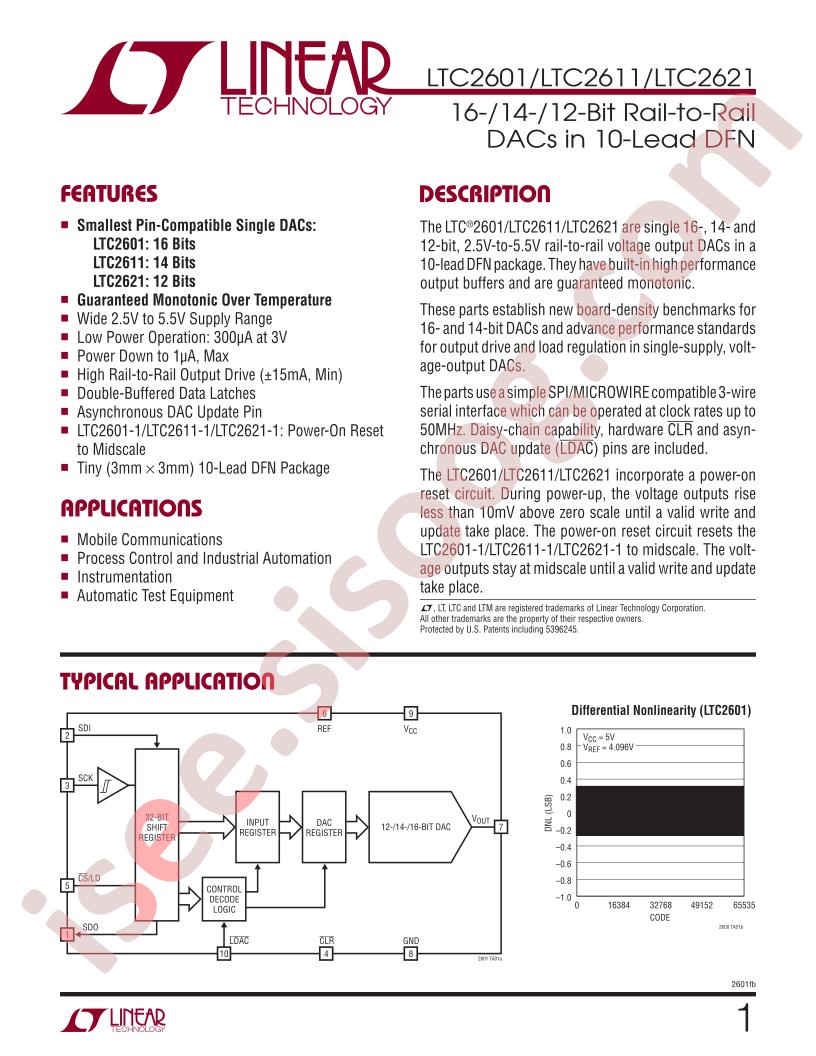

دانلود دیتاشیت LTC2601,11,21 Datasheet |
LTC2601,11,21 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
- Datasheet: Analog Devices LTC2611IDD-1#TRPBF
- Interface: SPI
- Resolution: 14Bit
- Output Type: Voltage-缓冲
- Settling Time: 9us
- Supply Voltage: 2.5V~5.5V
- Integral nonlinearity: ±3LSB;±1LSB
- Operating Temperature: -40°C~+85°C
- Package: DFN-10(3x3)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Number of Bits: 14
- Number of D/A Converters: 1
- Differential Output: No
- Data Interface: SPI
- Reference Type: External
- Voltage - Supply, Analog: 2.5V ~ 5.5V
- Voltage - Supply, Digital: 2.5V ~ 5.5V
- INL/DNL (LSB): ±3, ±1 (Max)
- Architecture: -
- Package / Case: 10-WFDFN Exposed Pad
- Supplier Device Package: 10-DFN (3x3)
- Mounting Type: Surface Mount
- Base Part Number: LTC2611
- detail: 14 Bit Digital to Analog Converter 1 10-DFN (3x3)
