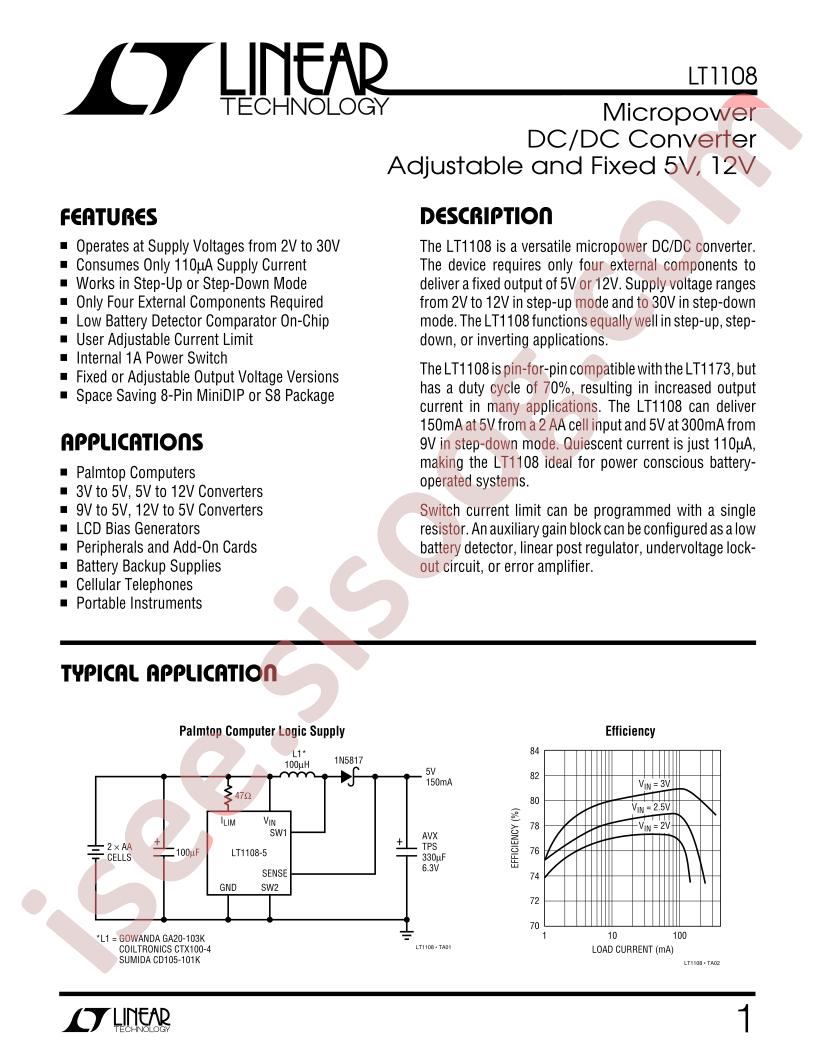

دیتاشیت LT1108CS8-12#PBF
مشخصات دیتاشیت
| نام دیتاشیت |
LT1108
|
| حجم فایل |
241.983
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
boost converterType;Step-down type
-
Topology:
Step-down;Boost
-
Datasheet:
Analog Devices LT1108CS8-12#PBF
-
Output Type:
Fixed
-
Input Voltage:
2V~30V
-
Output Voltage:
12V
-
Number of Outputs:
1
-
Switching Frequency:
19kHz
-
Output Current (Max):
1.5A
-
Operating Temperature:
0°C~+70°C@(TA)
-
Synchronous Rectification:
NO
-
Package:
SOP-8
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive or Negative
-
Voltage - Input (Min):
2V
-
Voltage - Input (Max):
30V
-
Voltage - Output (Min/Fixed):
12V
-
Voltage - Output (Max):
-
-
Current - Output:
1.5A (Switch)
-
Frequency - Switching:
19kHz
-
Synchronous Rectifier:
No
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SOIC
-
Base Part Number:
LT1108
-
detail:
Buck, Boost Switching Regulator IC Positive or Negative Fixed 12V 1 Output 1.5A (Switch) 8-SOIC (0.154", 3.90mm Width)
