دیتاشیت LTC3646EDE-1#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3646(-1) |
|---|---|
| حجم فایل | 595.924 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |

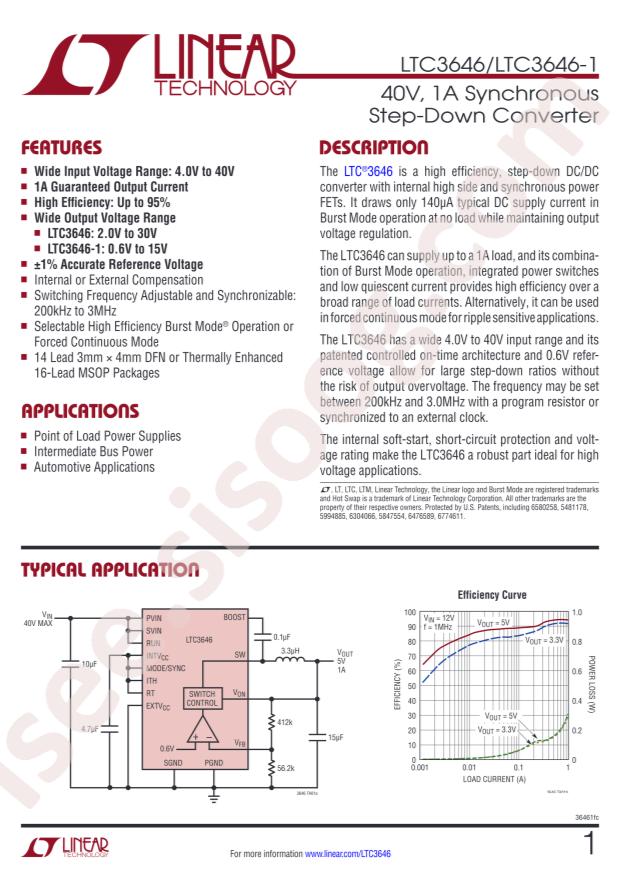

دانلود دیتاشیت LTC3646(-1) |
LTC3646(-1) Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices LTC3646EDE-1#TRPBF
- Output Type: Adjustable
- Input Voltage: 4V~40V
- Output Voltage: 0.6V~15V
- Number of Outputs: 1
- Switching Frequency: 3MHz
- Output Current (Max): 1A
- Operating Temperature: -40°C~+150°C@(TJ)
- Synchronous Rectification: Yes

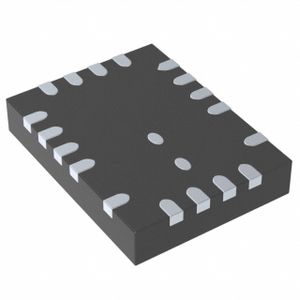

- Package: DFN-14(3x4)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 4V
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 0.6V
- Voltage - Output (Max): 15V
- Current - Output: 1A
- Frequency - Switching: 200kHz ~ 3MHz
- Synchronous Rectifier: Yes
- Mounting Type: Surface Mount
- Package / Case: 14-WFDFN Exposed Pad
- Supplier Device Package: 14-DFN (4x3)
- Base Part Number: LTC3646
- detail: Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 1A 14-WFDFN Exposed Pad
