دیتاشیت LTC4444MPMS8E-5#TRPBF

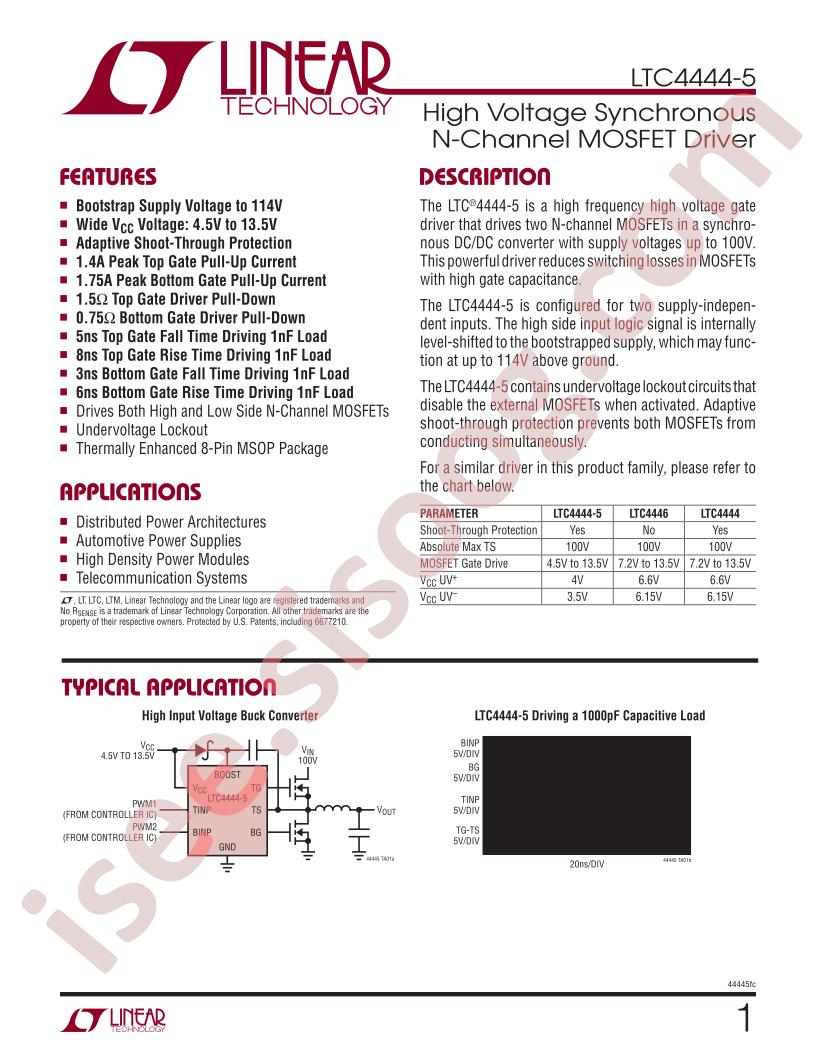

LTC4444-5 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LTC4444-5 Datasheet
حجم فایل 178.307 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

دانلود دیتاشیت LTC4444-5 Datasheet

LTC4444-5 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Analog Devices LTC4444MPMS8E-5#TRPBF
  • Fall Time: 5ns
  • Load Type: MOSFET
  • Rise Time: 8ns
  • Supply Voltage: 4.5V~13.5V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Peak Output Current(sink): 3A
  • Peak Output Current(source): 2.5A
  • Package: MSOP-8-EP
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Channel Type: Independent
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 4.5V ~ 13.5V
  • Logic Voltage - VIL, VIH: 1.85V, 3.25V
  • Current - Peak Output (Source, Sink): 2.5A, 3A
  • Input Type: Non-Inverting
  • High Side Voltage - Max (Bootstrap): 114V
  • Rise / Fall Time (Typ): 8ns, 5ns
  • Mounting Type: Surface Mount
  • Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
  • Supplier Device Package: 8-MSOP-EP
  • Base Part Number: LTC4444
  • detail: Half-Bridge Gate Driver IC Non-Inverting 8-MSOP-EP
