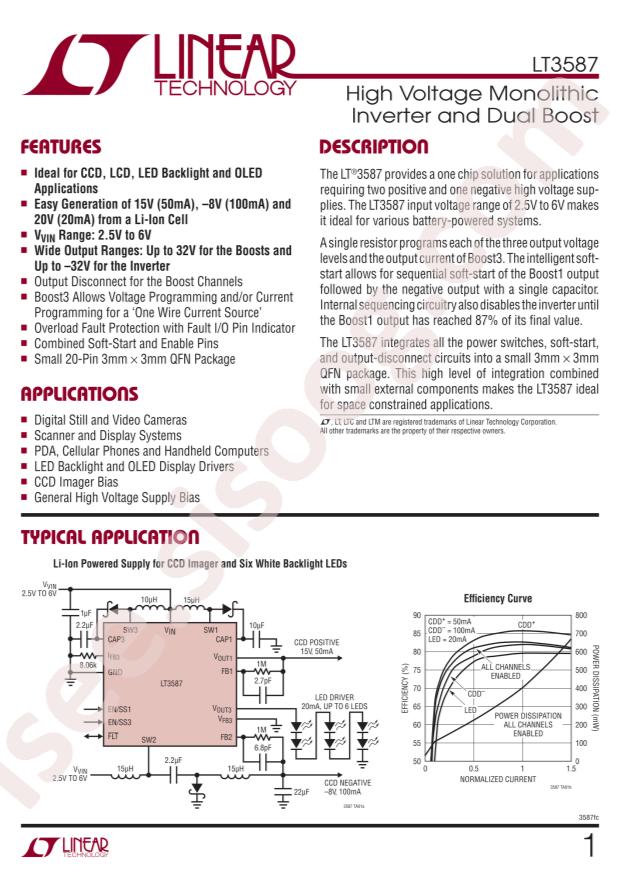

LT3587EUD#PBF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LT3587EUD#PBF
|
|
حجم فایل
|
104.242
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
24
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
boost converterType;Buck-boost type
-
Topology:
Boost;Cuk
-
Datasheet:
Analog Devices LT3587EUD#PBF
-
Output Type:
Adjustable
-
Input Voltage:
2.5V~6V
-
Number of Outputs:
3
-
Switching Frequency:
1MHz
-
Output Current (Max):
800mA;900mA;400mA
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
NO
-
Package:
QFN-20-EP(3x3)
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive and Negative (Dual Rail)
-
Voltage - Input (Min):
2.5V
-
Voltage - Input (Max):
6V
-
Voltage - Output (Min/Fixed):
±2.5V
-
Voltage - Output (Max):
±32V
-
Current - Output:
800mA (Switch), 900mA (Switch), 400mA (Switch)
-
Frequency - Switching:
1MHz
-
Synchronous Rectifier:
No
-
Mounting Type:
Surface Mount
-
Package / Case:
20-WFQFN Exposed Pad
-
Supplier Device Package:
20-QFN (3x3)
-
Base Part Number:
LT3587
-
detail:
Boost, Cuk Switching Regulator IC Positive and Negative (Dual Rail) Adjustable ±2.5V 3 Output 800mA (Switch), 900mA (Switch), 400mA (Switch) 20-WFQFN Exposed Pad
