دیتاشیت LT1963ET#30PBF
مشخصات دیتاشیت
| نام دیتاشیت | LT1963 Datasheet |
|---|---|
| حجم فایل | 277.589 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |

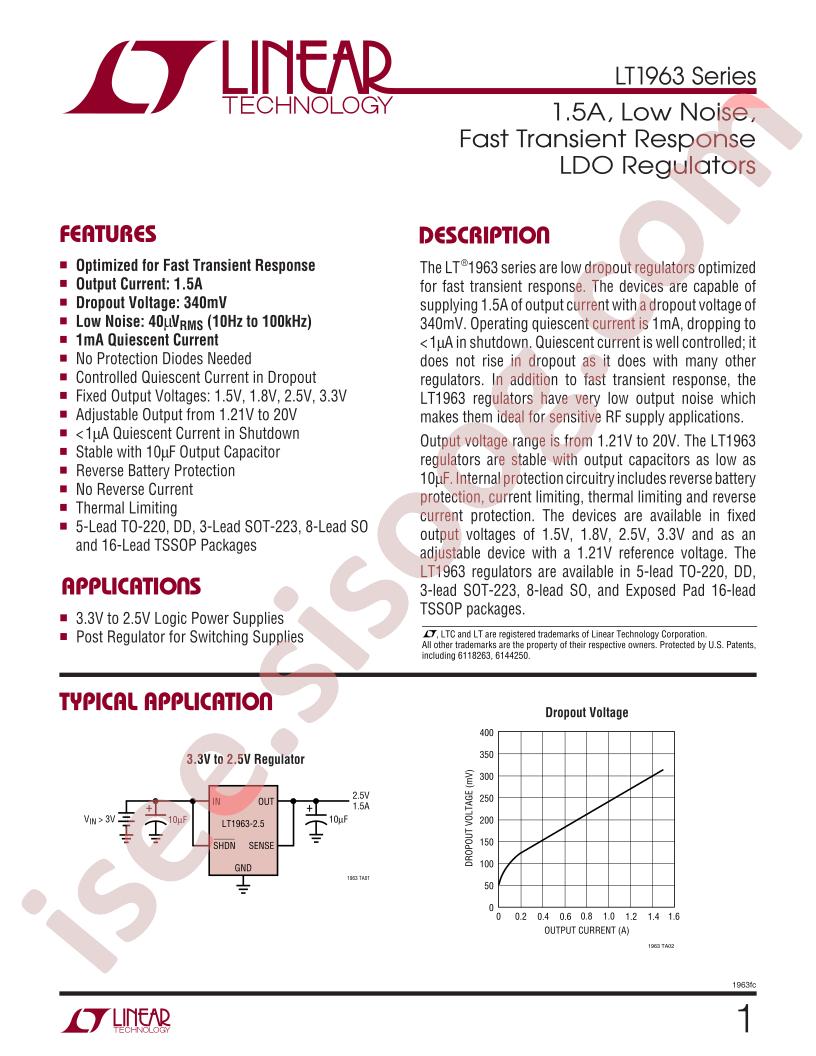

دانلود دیتاشیت LT1963 Datasheet |
LT1963 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices LT1963ET#30PBF
- Output Type: Adjustable
- Output Current: 1.5A
- Output Voltage: 1.21V~20V
- Dropout Voltage: 0.55V@(1.5A)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 20V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 1.5mA
- Power Supply Rejection Ratio (PSRR): 63dB@(120Hz)

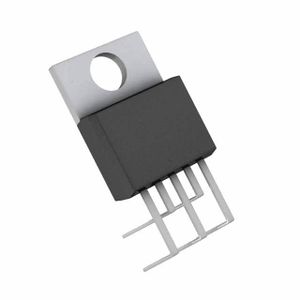

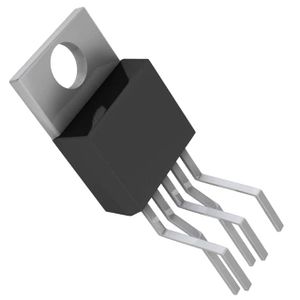

- Package: TO-220-5(Forming)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 20V
- Voltage - Output (Min/Fixed): 1.21V
- Voltage - Output (Max): 20V
- Voltage Dropout (Max): 0.55V @ 1.5A
- Current - Output: 1.5A
- Current - Quiescent (Iq): 1.5mA
- Current - Supply (Max): 120mA
- PSRR: 63dB (120Hz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Mounting Type: Through Hole
- Package / Case: TO-220-5 Formed Leads
- Supplier Device Package: TO-220-5 Flow 30
- Base Part Number: LT1963
- detail: Linear Voltage Regulator IC 1 Output 1.5A TO-220-5 Flow 30
