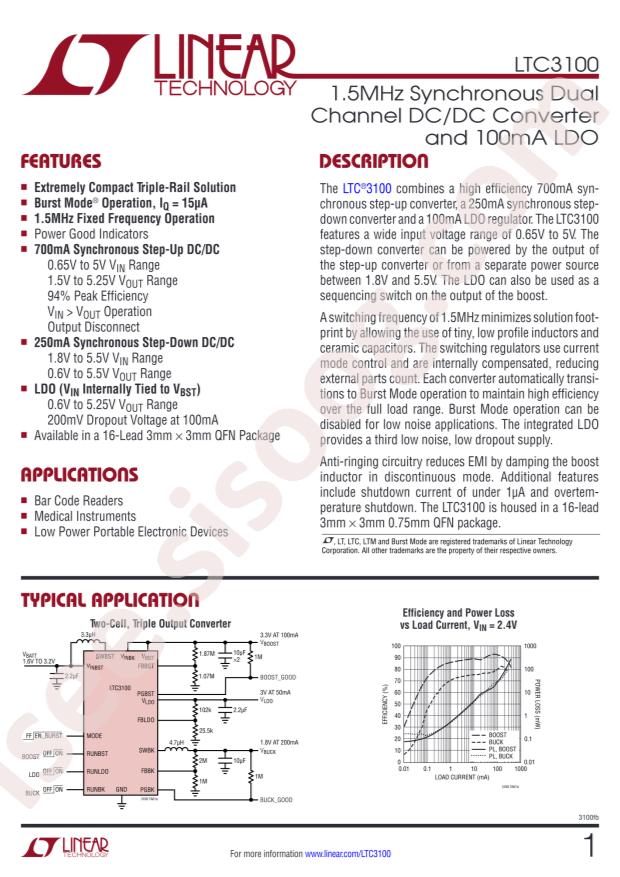

دیتاشیت LTC3100EUD#PBF
مشخصات دیتاشیت
| نام دیتاشیت |
LTC3100
|
| حجم فایل |
413.299
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
26
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Topology:
Step-down;Boost
-
Datasheet:
Analog Devices LTC3100EUD#PBF
-
Input Voltage:
0.5V~5.5V
-
Number of Outputs:
3
-
Switching Frequency:
1.5MHz
-
Operating Temperature:
-40°C~+85°C
-
Package:
QFN-16-EP(3x3)
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Frequency - Switching:
1.5MHz
-
Voltage/Current - Output 1:
0.6V ~ 5.5V, 250mA
-
Voltage/Current - Output 2:
1.5V ~ 5.25V, 700mA
-
Voltage/Current - Output 3:
0.6V ~ 5.25V, 100mA
-
w/LED Driver:
No
-
w/Supervisor:
No
-
w/Sequencer:
Yes
-
Voltage - Supply:
0.5V ~ 5.5V
-
Mounting Type:
Surface Mount
-
Package / Case:
16-WFQFN Exposed Pad
-
Supplier Device Package:
16-QFN-EP (3x3)
-
Base Part Number:
LTC3100
-
detail:
PMIC - Voltage Regulators - Linear + Switching 3 Output Step-Down (Buck) (1), Step-Up (Boost) (1), Linear (LDO) (1) 1.5MHz 16-QFN-EP (3x3)
