دیتاشیت LT3063MPDCB#TRPBF

LT3063MPDCB#TRPBF

مشخصات دیتاشیت

نام دیتاشیت LT3063MPDCB#TRPBF
حجم فایل 101.225 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت LT3063MPDCB#TRPBF

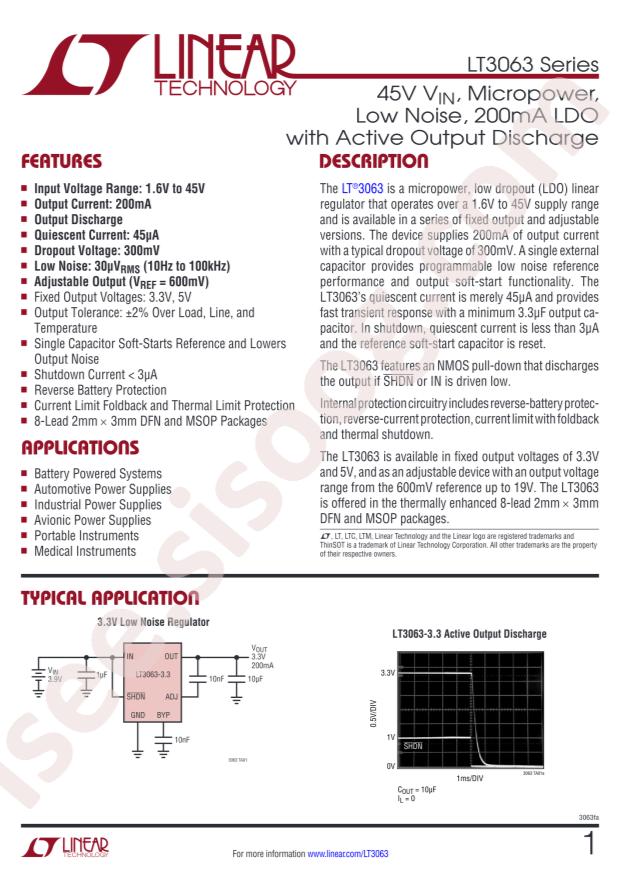

LT3063MPDCB#TRPBF Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Analog Devices LT3063MPDCB#TRPBF
  • Output Type: Adjustable
  • Output Current: 200mA
  • Output Voltage: 0.6V~19V
  • Dropout Voltage: 0.53V@(200mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 45V
  • Operating Temperature: -55°C~+150°C
  • Power Supply Rejection Ratio (PSRR): 85dB@(120Hz)
  • Package: DFN-8(2x3)
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Output Configuration: Positive
  • Number of Regulators: 1
  • Voltage - Input (Max): 45V
  • Voltage - Output (Min/Fixed): 0.6V
  • Voltage - Output (Max): 19V
  • Voltage Dropout (Max): 0.53V @ 200mA
  • Current - Output: 200mA
  • Current - Quiescent (Iq): 90µA
  • Current - Supply (Max): 10mA
  • PSRR: 85dB (120Hz)
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature, Reverse Polarity
  • Mounting Type: Surface Mount
  • Package / Case: 8-WFDFN Exposed Pad
  • Supplier Device Package: 8-DFN (2x3)
  • detail: Linear Voltage Regulator IC 1 Output 200mA 8-DFN (2x3)
